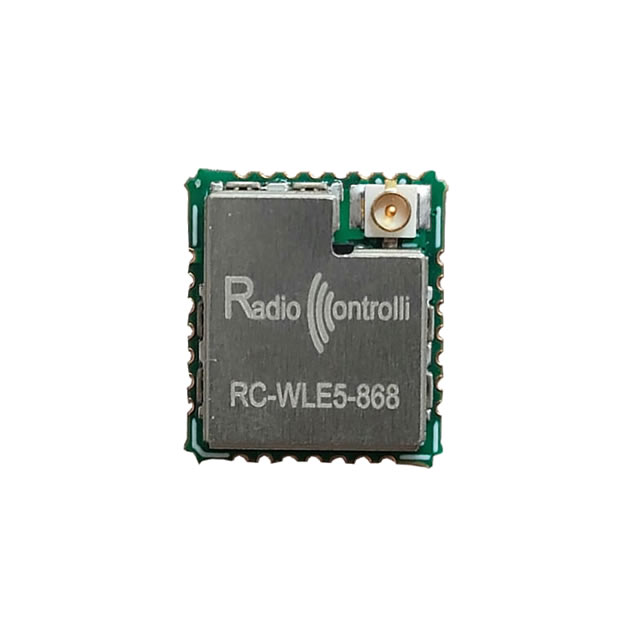

RC-WLE5-868
ActiveRadioControlli
RF TXRX MOD ISM<1GHZSMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RC-WLE5-868
ActiveRadioControlli
RF TXRX MOD ISM<1GHZSMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RC-WLE5-868 |
|---|---|
| Antenna Type | Antenna Not Included |
| Current - Receiving | 5 mA |
| Current - Transmitting | 120 mA |
| Frequency | 868 MHz |
| Memory Size | 64 kB, 256 kB |
| Modulation | BPSK, FSK, GFSK, MSK, GMSK |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Package / Case | 29-SMD Module |
| Power - Output | 18.5 dBm |
| Protocol | LPWAN |
| RF Family/Standard | General ISM < 1GHz |
| Sensitivity | -140 dBm |
| Serial Interfaces | GPIO |
| Utilized IC / Part | STM32WLE5JC |
| Voltage - Supply [Max] | 3.7 V |
| Voltage - Supply [Min] | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 4 | $ 25.00 | |
| 12 | $ 16.00 | |||
| 20 | $ 13.00 | |||
Description
General part information
RC-WLE5-868
General ISM < 1GHz LPWAN Transceiver Module 868MHz Antenna Not Included Surface Mount
