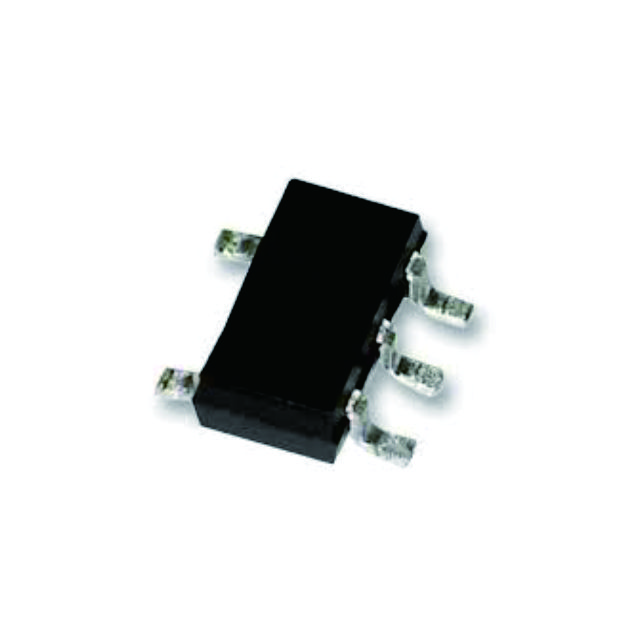

CS7R3204-27-TS-G
ActiveCanaan Semiconductor Pty Ltd
LOW DROPOUT REGULATOR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CS7R3204-27-TS-G
ActiveCanaan Semiconductor Pty Ltd
LOW DROPOUT REGULATOR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CS7R3204-27-TS-G |
|---|---|
| Current - Output | 250 mA |
| Current - Supply (Max) [Max] | 70 µA |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature [Max] | 140 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | 1.81 mOhm |
| Protection Features | Current Limit |
| Supplier Device Package | SOT-23-5L |
| Voltage - Input (Max) [Max] | 6 V |
| Voltage - Output (Min/Fixed) | 2.7 V |
| Voltage Dropout (Max) [Max] | 0.16 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3000 | $ 0.17 | |
Description
General part information
CS7R3204-27-TS-G
Linear Voltage Regulator IC Positive Fixed 1 Output 250mA SOT-23-5L
Documents
Technical documentation and resources
