0034.3885
ActiveSCHURTER Inc.

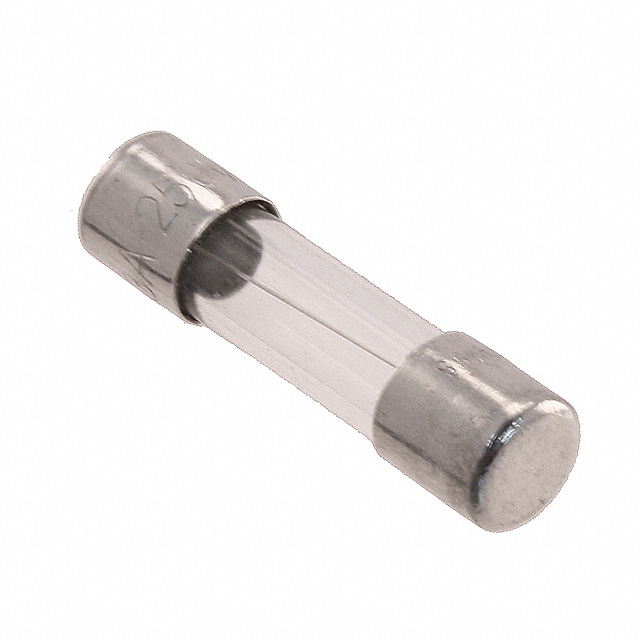

FUSE GLASS 6.3A 250VAC 5X20MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
0034.3885
ActiveSCHURTER Inc.
FUSE GLASS 6.3A 250VAC 5X20MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 0034.3885 |
|---|---|
| Approval Agency | cULus |
| Breaking Capacity @ Rated Voltage | 200 A |
| Current Rating (Amps) | 6.3 A |
| Melting I²t | 40.8 |
| Mounting Type | Requires Holder |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case [x] | 5 mm |
| Package / Case [y] | 20 mm |
| Response Time | Fast Blow |
| Size / Dimension [diameter] | 5.2 mm |
| Size / Dimension [diameter] | 0.205 in |
| Size / Dimension [x] | 0.787 in |
| Size / Dimension [x] | 20 mm |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.88 | |
| 50 | $ 1.40 | |||
| 100 | $ 1.10 | |||
| 500 | $ 0.95 | |||
Description
General part information
0034.3885
6.3 A 250 V AC DC Fuse Cartridge, Glass Requires Holder 5mm x 20mm
