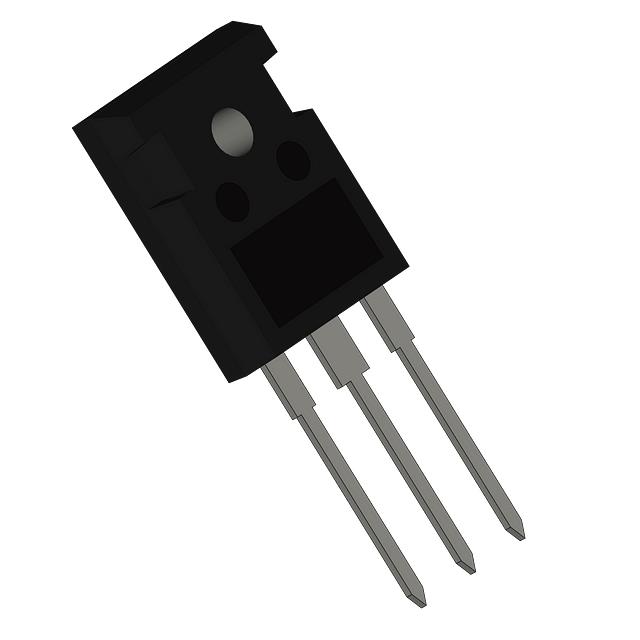

HGTG32N60E2
ActiveHarris Corporation
IGBT 600V 50A TO-247
Deep-Dive with AI
Search across all available documentation for this part.
HGTG32N60E2
ActiveHarris Corporation
IGBT 600V 50A TO-247
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HGTG32N60E2 |
|---|---|
| Current - Collector (Ic) (Max) | 50 A |
| Current - Collector Pulsed (Icm) | 200 A |
| Gate Charge | 265 nC |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | TO-247-3 |
| Power - Max [Max] | 208 W |
| Supplier Device Package | TO-247 |
| Vce(on) (Max) @ Vge, Ic | 2.9 V |
| Voltage - Collector Emitter Breakdown (Max) [Max] | 600 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 40 | $ 7.51 | |
Description
General part information
HGTG32N60E2
IGBT 600 V 50 A 208 W Through Hole TO-247
Documents
Technical documentation and resources
No documents available
