3503G2B7K68FTD
ActiveTE Connectivity Passive Product
RES 7.68K OHM 1% 2W 1206
Deep-Dive with AI
Search across all available documentation for this part.
3503G2B7K68FTD
ActiveTE Connectivity Passive Product
RES 7.68K OHM 1% 2W 1206
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3503G2B7K68FTD |
|---|---|
| Composition | Thin Film |
| Height - Seated (Max) [Max] | 0.58 mm |
| Height - Seated (Max) [Max] | 0.023 in |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 1206 (3216 Metric) |
| Power (Watts) | 2 W |
| Resistance | 7.68 kOhms |
| Supplier Device Package | 1206 |
| Temperature Coefficient | 50 ppm/°C |
| Tolerance | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.27 | |
| 10 | $ 1.34 | |||
| 50 | $ 0.99 | |||
| 100 | $ 0.88 | |||
| 500 | $ 0.69 | |||
| 1000 | $ 0.63 | |||
| Digi-Reel® | 1 | $ 2.27 | ||
| 10 | $ 1.34 | |||
| 50 | $ 0.99 | |||
| 100 | $ 0.88 | |||
| 500 | $ 0.69 | |||
| 1000 | $ 0.63 | |||
| Tape & Reel (TR) | 5000 | $ 0.46 | ||
Description
General part information
3503G2B7K68FTD

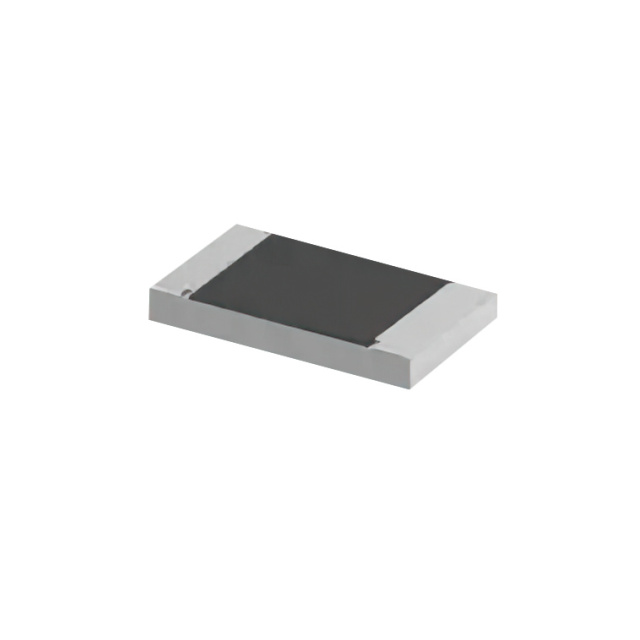

7.68 kOhms ±1% 2W Chip Resistor 1206 (3216 Metric) Thin Film
Documents
Technical documentation and resources
