B4C103B
ActiveEMI FILTER COMPANY

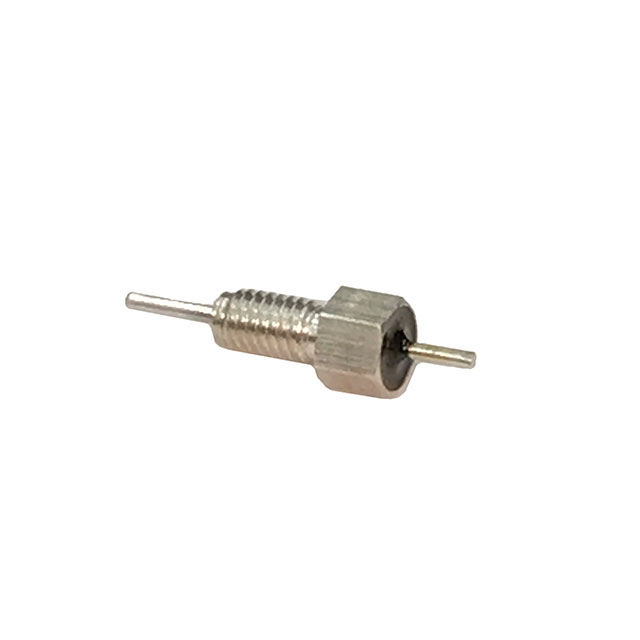

FILTER, 4-40, 10,000PF, 100VDC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
B4C103B
ActiveEMI FILTER COMPANY
FILTER, 4-40, 10,000PF, 100VDC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | B4C103B |
|---|---|
| Capacitance | 10000 pF |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Bushing, Axial |
| Size / Dimension [diameter] | 0.156 in |
| Size / Dimension [diameter] | 3.96 mm |
| Size / Dimension [x] | 0.34 " |
| Size / Dimension [x] | 8.64 mm |
| Temperature Coefficient | X7R |
| Tolerance [Max] | 100 % |
| Tolerance [Min] | 0 % |
| Voltage - Rated | 100 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 12.11 | |
| 25 | $ 9.78 | |||
| 50 | $ 7.81 | |||
| 100 | $ 5.86 | |||
| 250 | $ 4.90 | |||
| 500 | $ 4.30 | |||
| 1000 | $ 3.91 | |||
| 2500 | $ 3.71 | |||
| 5000 | $ 3.51 | |||
Description
General part information
B4C103B
10000 pF Feed Through Capacitor 100V Axial, Bushing
