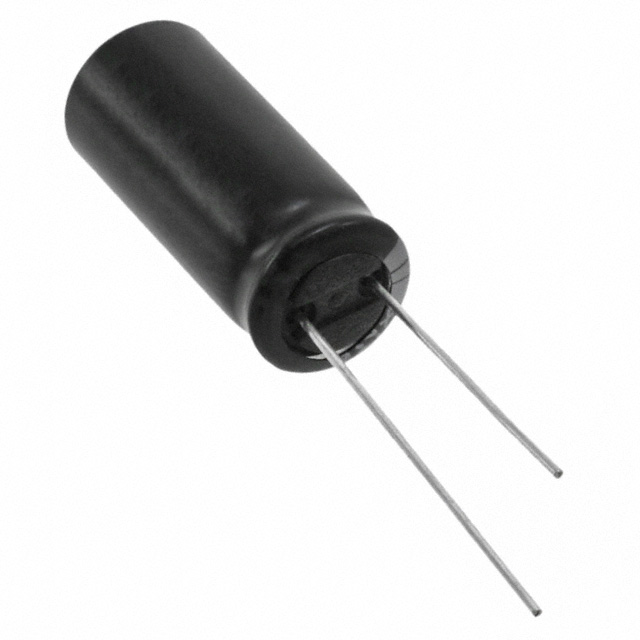

35YXG680MEFCT810X28
Rubycon
CAP ALUM 680UF 20% 35V RADIAL TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
35YXG680MEFCT810X28
Rubycon
CAP ALUM 680UF 20% 35V RADIAL TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 35YXG680MEFCT810X28 |
|---|---|
| Applications | General Purpose |
| Capacitance | 680 µF |
| Height - Seated (Max) [Max] [z] | 1.181 " |
| Height - Seated (Max) [Max] [z] | 30 mm |
| Impedance | 31 mOhms |
| Lead Spacing | 5 mm |
| Lead Spacing | 0.197 in |
| Lifetime @ Temp. | 5000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Radial, Can |
| Polarization | Polar |
| Ripple Current @ High Frequency | 1.91 A |
| Ripple Current @ Low Frequency | 1.051 A |
| Size / Dimension [diameter] | 10 mm |
| Size / Dimension [diameter] | 0.394 in |
| Tolerance | 20 % |
| Voltage - Rated | 35 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Box (TB) | 1000 | $ 0.34 | |
Description
General part information
35YXG680MEFCT810X28
680 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
