12ML5000
ActiveHTP

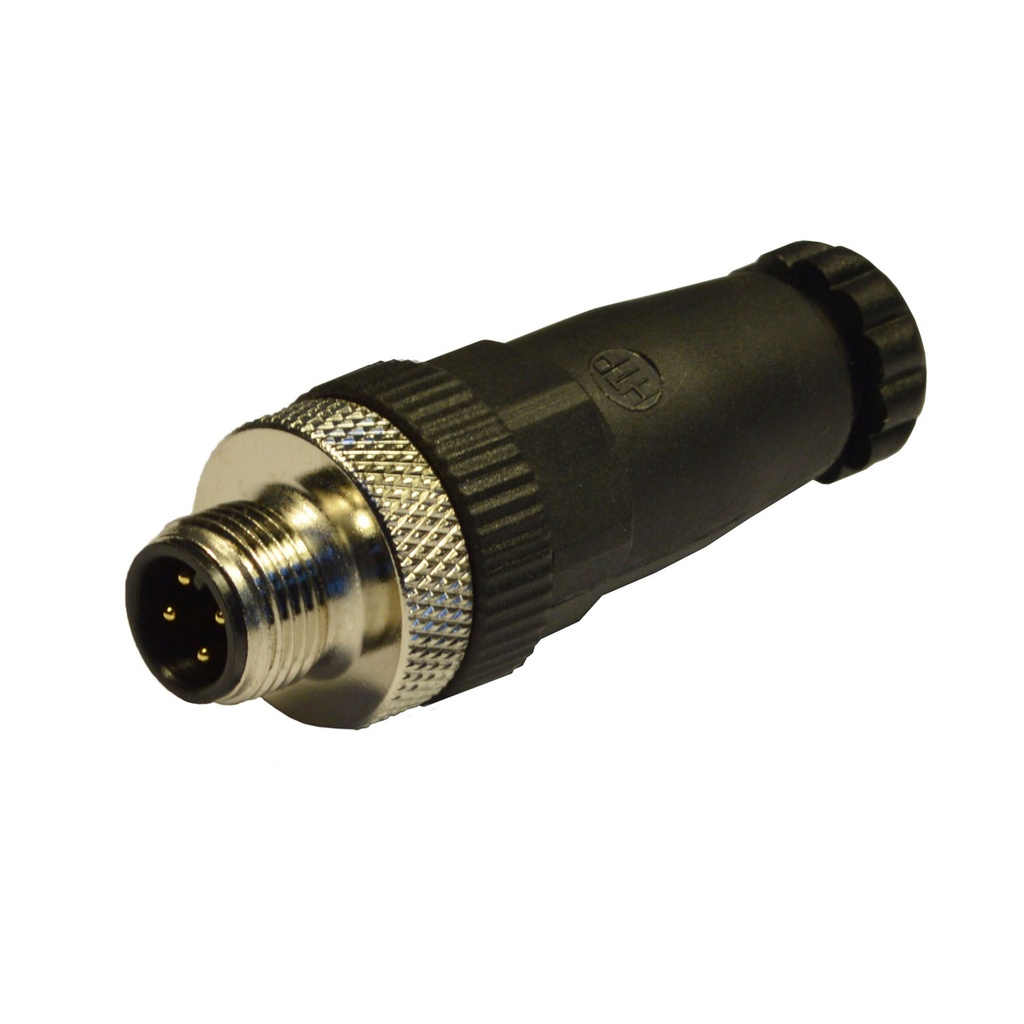

M12 STRAIGHT MALE FIELD WIREABLE
Deep-Dive with AI
Search across all available documentation for this part.
12ML5000
ActiveHTP
M12 STRAIGHT MALE FIELD WIREABLE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 12ML5000 |
|---|---|
| Cable Opening [custom] | 0.433 in, 0.236 in |
| Cable Opening [custom] | 11 mm |
| Cable Opening [custom] | 6 mm |
| Color | Black |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Phosphorus Bronze |
| Current Rating (Amps) | 4 A |
| Features | Coupling Nut, Backshell |
| Ingress Protection | IP67, IP65 |
| Insert Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Material | Polyamide (PA66), Nylon 6/6 |
| Shell Size - Insert | M12-5 |
| Shielding | Unshielded |
| Termination | Screw |
| Voltage Rating | 60 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 13.37 | |
Description
General part information
12ML5000
5 Position Circular Connector Plug, Male Pins Screw
Documents
Technical documentation and resources
No documents available
