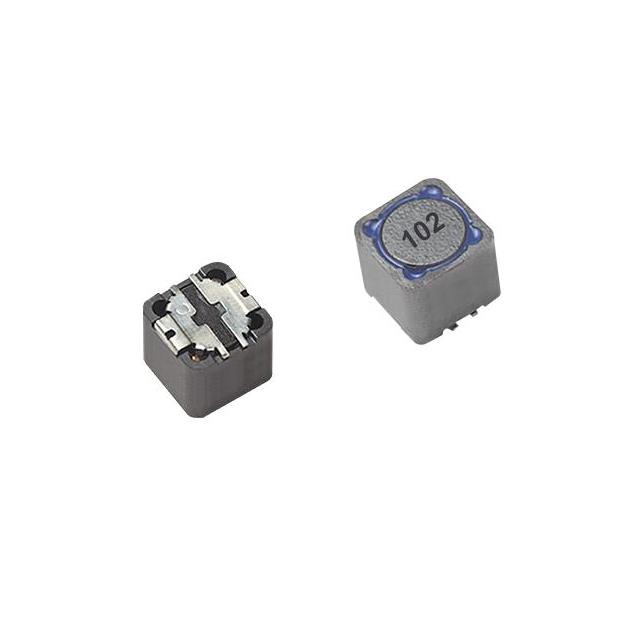

SPRH1210-331M
ActiveCODACA
FIXED IND 330UH 1.39A 402 MOHM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SPRH1210-331M
ActiveCODACA
FIXED IND 330UH 1.39A 402 MOHM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SPRH1210-331M |
|---|---|
| Current - Saturation (Isat) | 2.05 A |
| Current Rating (Amps) | 1.39 A |
| DC Resistance (DCR) [Max] | 402 mOhm |
| Features | High Current, Low DCR, Drum Core |
| Height - Seated (Max) [Max] | 0.394 in |
| Height - Seated (Max) [Max] | 10 mm |
| Inductance | 330 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 2-SMD |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension [x] | 0.472 in |
| Size / Dimension [x] | 12 mm |
| Size / Dimension [y] | 0.472 " |
| Size / Dimension [y] | 12 mm |
| Supplier Device Package | 2-SMD |
| Tolerance | 20 % |
| Type | Wirewound, Drum Core |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.30 | |
| 10 | $ 1.06 | |||
| 100 | $ 0.88 | |||
| Digi-Reel® | 1 | $ 1.53 | ||
| 10 | $ 1.19 | |||
| 25 | $ 1.07 | |||
| 50 | $ 0.99 | |||
| 100 | $ 0.92 | |||
| Tape & Reel (TR) | 250 | $ 0.84 | ||
| 500 | $ 0.78 | |||
| 750 | $ 0.74 | |||
| 1250 | $ 0.70 | |||
| 1750 | $ 0.68 | |||
| 2500 | $ 0.65 | |||
| 6250 | $ 0.63 | |||
Description
General part information
SPRH1210-331M
330 µH Shielded Drum Core, Wirewound Inductor 1.39 A 402mOhm Max 2-SMD Drum Core, High Current, Low DCR
