400-0723-01
ActiveSwift Bridge Technologies

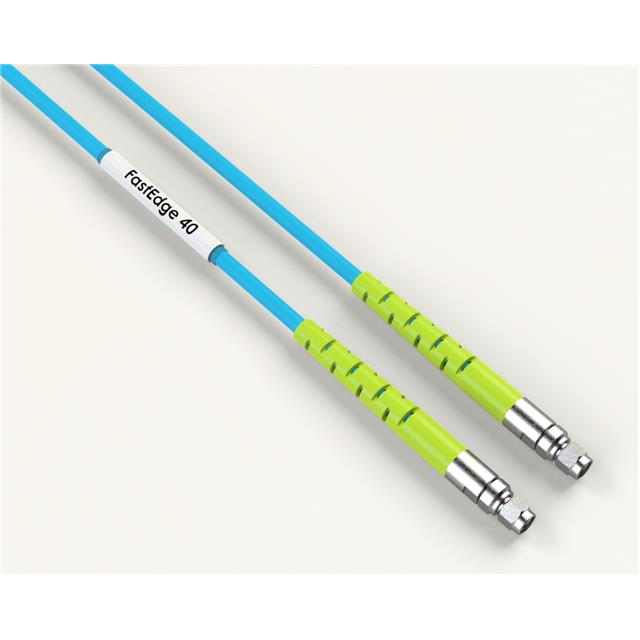

CBL ASSY 2.92MM PLUG-PLUG 3.3'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
400-0723-01
ActiveSwift Bridge Technologies
CBL ASSY 2.92MM PLUG-PLUG 3.3'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 400-0723-01 |
|---|---|
| 1st Connector | 2.92mm Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | 2.92 mm |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Color | Blue |
| Connector Impedance | 50 Ohms |
| Features | Double-Shielded, Test Cable, Flexible |
| Frequency - Max [Max] | 40 GHz |
| Length | 1 m |
| Length | 3.3 ft |
| Length | 39.4 in |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -45 °C |
| Overall Impedance | 50 Ohms |
| Style [Max] | 2.92 mm |
| Style [Min] | 2.92 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 498.00 | |
| 6 | $ 461.00 | |||
| 11 | $ 429.00 | |||
Description
General part information
400-0723-01
Cable Assembly Coaxial 2.92mm to 2.92mm 39.4" (1.0m) 3.3'
Documents
Technical documentation and resources
