Technical Specifications
Parameters and characteristics for this part
| Specification | 04025C562K4T2A |
|---|---|
| Applications | Automotive |
| Capacitance | 5600 pF |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 0402 (1005 Metric) |
| Ratings | AEC-Q200 |
| Size / Dimension [x] | 0.04 " |
| Size / Dimension [x] | 1 mm |
| Size / Dimension [y] | 0.5 mm |
| Size / Dimension [y] | 0.02 in |
| Temperature Coefficient | X7R |
| Thickness (Max) [Max] | 0.022 in |
| Thickness (Max) [Max] | 0.56 mm |
| Tolerance | 10 % |
| Voltage - Rated | 50 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 10000 | $ 0.02 | |
Description
General part information

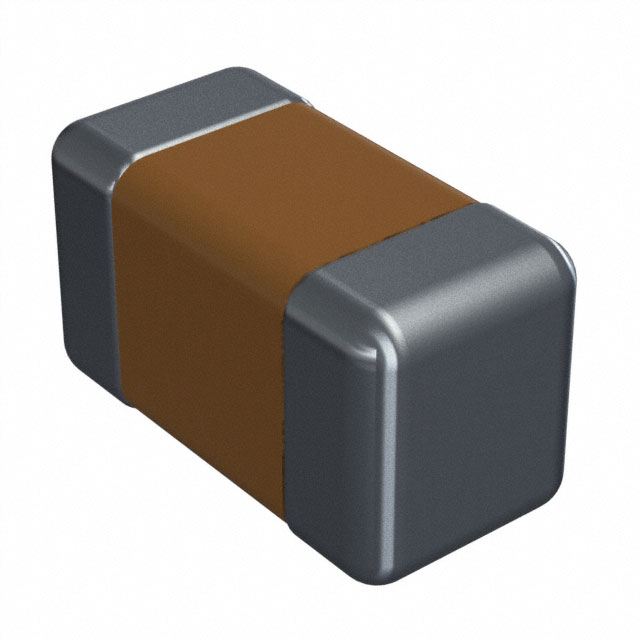

04025C562K4T2A
5600 pF ±10% 50V Ceramic Capacitor X7R 0402 (1005 Metric)
