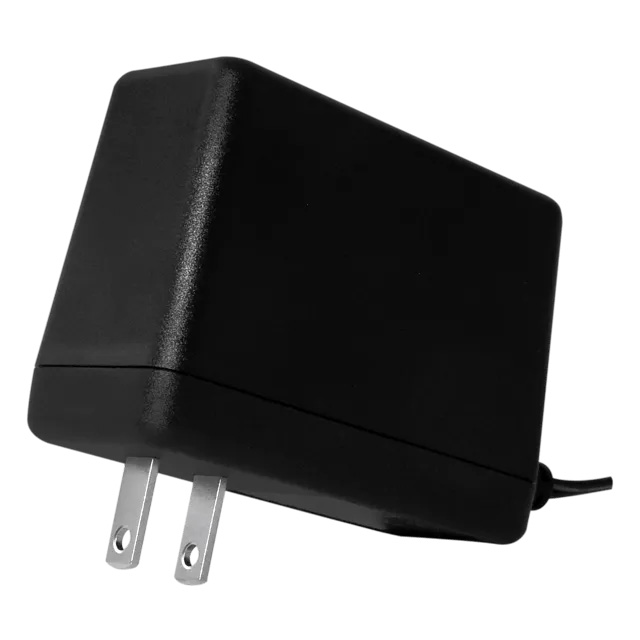

SWI36-13.5-N-P6
ActiveCUI Inc.
AC-DC, 13.5 VDC, 2.66 A, SW, WAL
Deep-Dive with AI
Search across all available documentation for this part.
SWI36-13.5-N-P6
ActiveCUI Inc.
AC-DC, 13.5 VDC, 2.66 A, SW, WAL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SWI36-13.5-N-P6 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | PSE, cULus |
| Cord Length | 1.5 m |
| Cord Length | 59 in |
| Current - Output (Max) [Max] | 2.66 A |
| Efficiency | CoC Tier 2, Level VI |
| Form | Wall Mount (Class II) |
| Input Connector | NEMA 1-15P |
| Input Type | Fixed Blade |
| No Load Power Consumption | 100 mW |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | -20 C |
| Output Connector | Barrel Plug |
| Output Connector [diameter] | 5.5 mm, 2.5 mm |
| Output Connector [x] | 9.5 mm |
| Polarization | Positive Center |
| Power (Watts) | 36 W |
| Region Utilized | North America |
| Size / Dimension [x] | 79 mm |
| Size / Dimension [x] | 3.11 in |
| Size / Dimension [y] | 1.34 in |
| Size / Dimension [y] | 34 mm |
| Size / Dimension [z] | 2.2 in |
| Size / Dimension [z] | 56 mm |
| Standard Number | 62368-1 |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 13.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1000 | $ 16.32 | |
Description
General part information
SWI36-13.5-N-P6
13.5V 36 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
