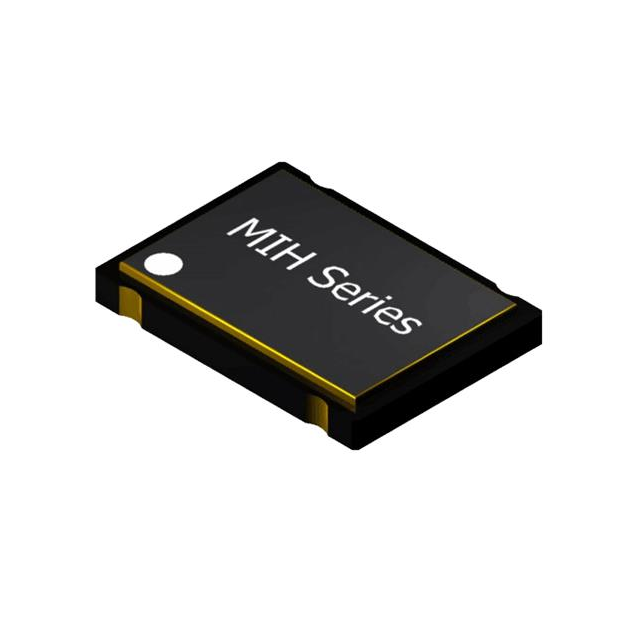

MIH302548AH-20.000MHZ-T
ActiveMMD
OSC XO 20MHZ 3.3V HCMOS SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MIH302548AH-20.000MHZ-T
ActiveMMD
OSC XO 20MHZ 3.3V HCMOS SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MIH302548AH-20.000MHZ-T |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Disable) (Max) [Max] | 10 ÁA |
| Current - Supply (Max) [Max] | 40 mA |
| Frequency | 20 MHz |
| Frequency Stability | 25 ppm |
| Function | Enable/Disable |
| Height - Seated (Max) [Max] | 0.067 in |
| Height - Seated (Max) [Max] | 1.7 mm |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | HCMOS |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 0.283 in |
| Size / Dimension [x] | 7.2 mm |
| Size / Dimension [y] | 5.2 mm |
| Size / Dimension [y] | 0.205 " |
| Type | XO (Standard) |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.54 | |
| 10 | $ 1.34 | |||
| 50 | $ 1.21 | |||
| 100 | $ 1.16 | |||
| 500 | $ 1.06 | |||
| Digi-Reel® | 1 | $ 1.54 | ||
| 10 | $ 1.34 | |||
| 50 | $ 1.21 | |||
| 100 | $ 1.16 | |||
| 500 | $ 1.06 | |||
| Tape & Reel (TR) | 1000 | $ 1.01 | ||
| 2000 | $ 0.97 | |||
| 3000 | $ 0.95 | |||
| 5000 | $ 0.92 | |||
| 7000 | $ 0.90 | |||
| 10000 | $ 0.88 | |||
Description
General part information
MIH302548AH-20.000MHZ-T
20 MHz XO (Standard) HCMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
