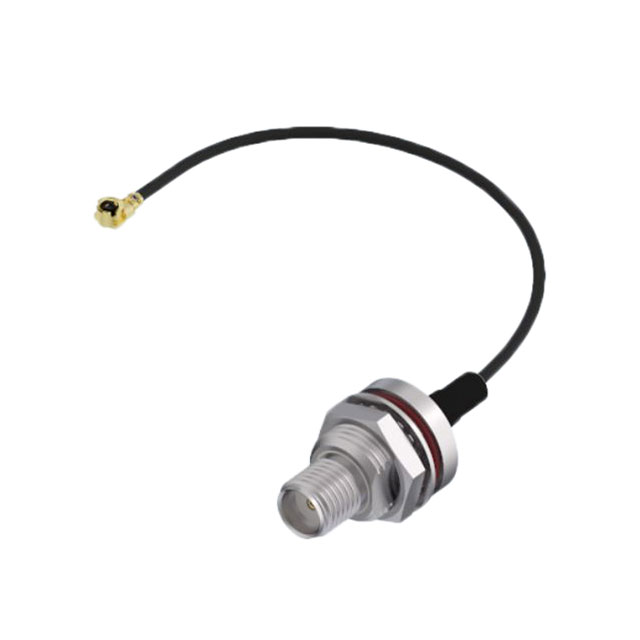

CAB442RF-0100-A-1
ActiveGCT (Gradconn)
COAX CBL MHF1 TO SMA 3.9"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CAB442RF-0100-A-1
ActiveGCT (Gradconn)
COAX CBL MHF1 TO SMA 3.9"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CAB442RF-0100-A-1 |
|---|---|
| 1st Connector | SMA Jack |
| 1st Connector Mounting Feature | Bulkhead - Front Side Nut |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | I-PEX MHF1 Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-178 |
| Color | Brown |
| Frequency - Max [Max] | 6000 MHz |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Length [x] | 0.1 m |
| Length [x] | 3.937 in |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | I-PEX MHF1 to SMA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 16.19 | |
| 10 | $ 13.76 | |||
| 25 | $ 12.90 | |||
| 50 | $ 12.29 | |||
| 100 | $ 11.70 | |||
| 250 | $ 10.97 | |||
| 500 | $ 10.44 | |||
| 1000 | $ 9.95 | |||
Description
General part information
CAB442RF-0100-A-1
Cable Assembly Coaxial I-PEX MHF1 to SMA RG-178 3.937" (100.00mm)
