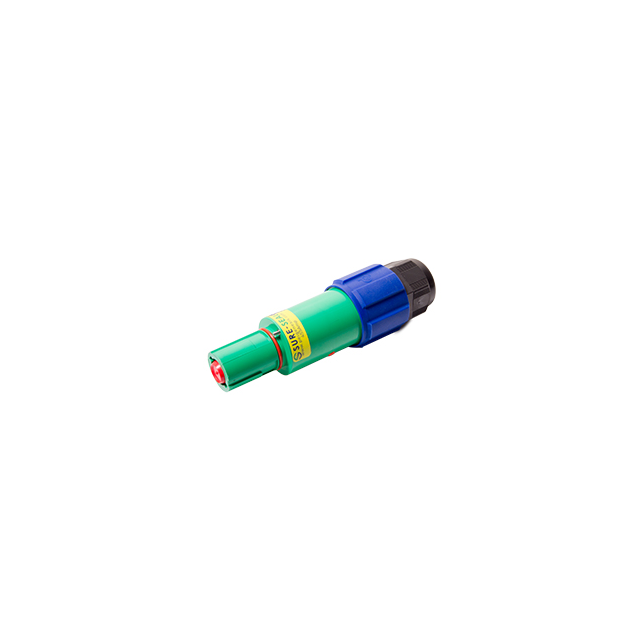

IPSLD-N-BL-S120-M40A-UL
ActiveSure-Seal
CONN PLUG FMALE 1POS SCREW
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
IPSLD-N-BL-S120-M40A-UL
ActiveSure-Seal
CONN PLUG FMALE 1POS SCREW
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IPSLD-N-BL-S120-M40A-UL |
|---|---|
| Applications | Industrial |
| Color | Blue |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Silver |
| Current Rating (Amps) | 800 A |
| Fastening Type | Bayonet Lock |
| Features | Cable Clamp, Strain Relief |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 1 |
| Primary Material | Plastic |
| Termination | Screw |
| Voltage Rating | 1000 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 46.41 | |
| 10 | $ 42.19 | |||
| 25 | $ 40.71 | |||
| 50 | $ 38.68 | |||
| 100 | $ 37.43 | |||
Description
General part information
IPSLD-N-BL-S120-M40A-UL
1 Position Circular Connector Plug, Female Sockets Screw
