US1M
ActiveBruckewell

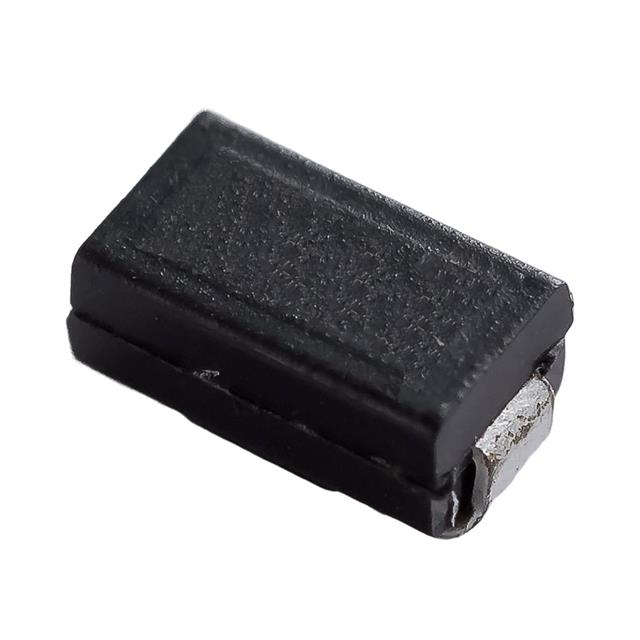

ULTRA FAST DIODE 1A 1000V SMA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
US1M
ActiveBruckewell
ULTRA FAST DIODE 1A 1000V SMA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | US1M |
|---|---|
| Current - Average Rectified (Io) | 1 A |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction [Max] | 150 °C |
| Operating Temperature - Junction [Min] | -55 °C |
| Package / Case | DO-214AC, SMA |
| Reverse Recovery Time (trr) | 75 ns |
| Speed | 200 mA, 500 ns |
| Supplier Device Package | DO-214AC (SMA) |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) [Max] | 1000 V |
| Voltage - Forward (Vf) (Max) @ If [Max] | 1.7 V |
