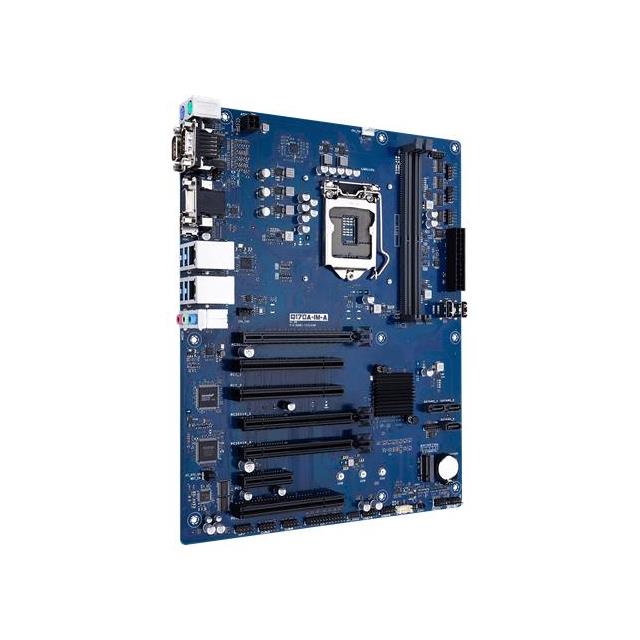

Q170A-IM-A
ActiveASUS
SBC 32GB/0GB RAM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | Q170A-IM-A |
|---|---|
| Cooling Type | Fan |
| Core Processor | 7th/6th Gen Intel® CoreTM i7/i5/i3/Pentium®/Celeron® LGA 1151 |
| Ethernet | 2, 100 Mbps, 10 Mbps, 1000 Mbps |
| Ethernet | RJ45 |
| Expansion Site/Bus | SATA, SMBus, PCIe, Audio, PCI, VGA, GPIO, M.2 |
| Form Factor | ATX |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | 0 °C |
| RAM Capacity/Installed | 32 GB, 0 GB |
| RS-232 (422, 485) | 2 |
| Size / Dimension [x] | 12.008 in |
| Size / Dimension [x] | 305 mm |
| Size / Dimension [y] | 244 mm |
| Size / Dimension [y] | 9.606 in |
| Storage Interface | PCIe, SPI, M.2, SATA3 |
| USB | USB 2.0, USB 3.0 |
| Video Outputs | VGA, HDMI |
| Watchdog Timer | True |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 243.00 | |
Description
General part information
Q170A-IM-A
Single Board Computer Core 32GB/0GB RAM 7th/6th Gen Intel® CoreTM i7/i5/i3/Pentium®/Celeron® LGA 1151
