445C23B12M00000
ActiveTusonix a Subsidiary of CTS Electronic Components

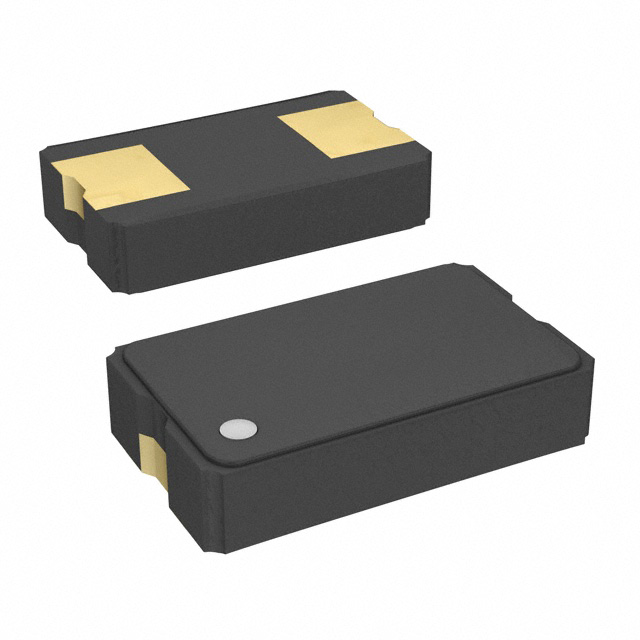

CRYSTAL 12.0000MHZ 13PF SMD
Deep-Dive with AI
Search across all available documentation for this part.
445C23B12M00000
ActiveTusonix a Subsidiary of CTS Electronic Components
CRYSTAL 12.0000MHZ 13PF SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 445C23B12M00000 |
|---|---|
| ESR (Equivalent Series Resistance) | 50 Ohms |
| Frequency | 12 MHz |
| Frequency Stability | 30 ppm |
| Frequency Tolerance | 20 ppm |
| Height - Seated (Max) | 1.35 mm |
| Height - Seated (Max) [Max] [z] | 0.053 in |
| Load Capacitance | 13 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Package / Case | 2-SMD, No Lead |
| Size / Dimension [x] | 0.197 in |
| Size / Dimension [x] | 5 mm |
| Size / Dimension [y] | 0.126 " |
| Size / Dimension [y] | 3.2 mm |
| Type | MHz Crystal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1000 | $ 0.47 | |
Description
General part information
445C23B12M00000
12 MHz ±20ppm Crystal 13pF 50 Ohms 2-SMD, No Lead
