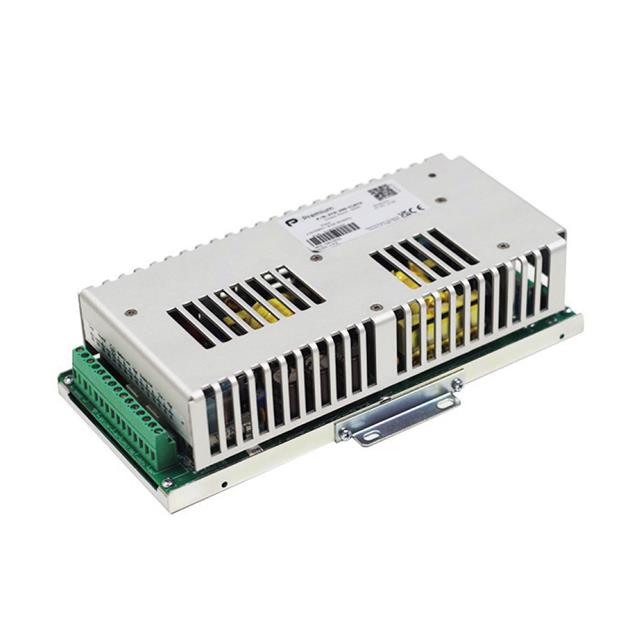

5187A
ActivePremium PSU
BATT CHARGER ENCLOSED 24V 4.8A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5187A
ActivePremium PSU
BATT CHARGER ENCLOSED 24V 4.8A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 5187A |
|---|---|
| Approval Agency | UKCA, CE |
| Battery Chemistry | Lead Acid |
| Charge Current - Max [Max] | 4.8 A |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Power - Max [Max] | 115 W |
| Size / Dimension [x] | 8.66 " |
| Size / Dimension [x] | 220 mm |
| Size / Dimension [y] | 1000 mm |
| Size / Dimension [y] | 39.37 in |
| Size / Dimension [z] | 42 mm |
| Size / Dimension [z] | 1.65 " |
| Termination Style | Terminal Block |
| Type | Enclosed |
| Voltage - Input [Max] | 220 VAC |
| Voltage - Input [Min] | 100 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 324.30 | |
Description
General part information
5187A
Enclosed Battery Charger 24V 4.8A
Documents
Technical documentation and resources
