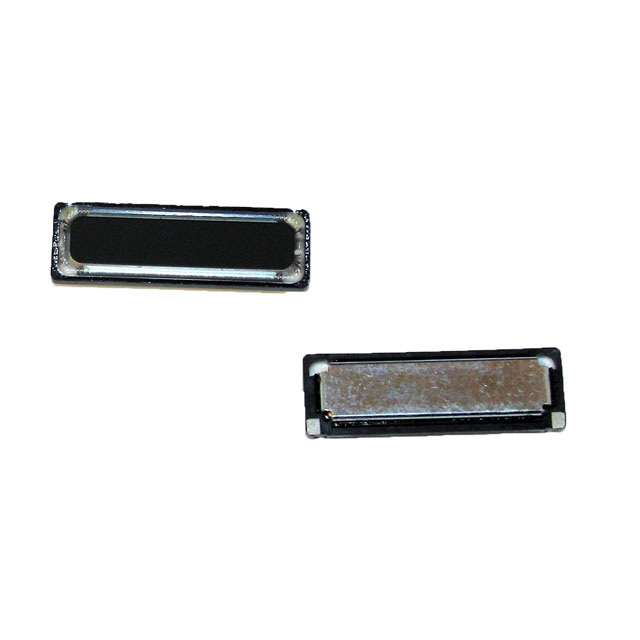

CS40-01P50-04-1X
ObsoleteChallenge Electronics
SPEAKER 8OHM 1W TOP PORT 98DB
Deep-Dive with AI
Search across all available documentation for this part.
CS40-01P50-04-1X
ObsoleteChallenge Electronics
SPEAKER 8OHM 1W TOP PORT 98DB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CS40-01P50-04-1X |
|---|---|
| Efficiency - dBA | 98 dBA |
| Efficiency - Testing | 1W/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 500 Hz |
| Frequency Range [Max] | 20 kHz |
| Frequency Range [Min] | 500 Hz |
| Height - Seated (Max) [Max] | 0.157 in |
| Height - Seated (Max) [Max] | 4 mm |
| Impedance | 8 Ohms |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material - Cone | Polyetheretherketone (PEEK) |
| Material - Magnet | Nd-Fe-B |
| Port Location | Top |
| Power - Max [Max] | 1.2 W |
| Power - Rated | 1 W |
| Shape | Rectangular |
| Size / Dimension [x] | 1.575 in |
| Size / Dimension [x] | 40 mm |
| Size / Dimension [y] | 13 mm |
| Size / Dimension [y] | 0.512 in |
| Technology | Magnetic |
| Termination | Solder Pads |
| Type | General Purpose |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
CS40-01P50-04-1X
8 Ohms General Purpose Speaker 1 W 500 Hz ~ 20 kHz Top Rectangular
Documents
Technical documentation and resources
No documents available
