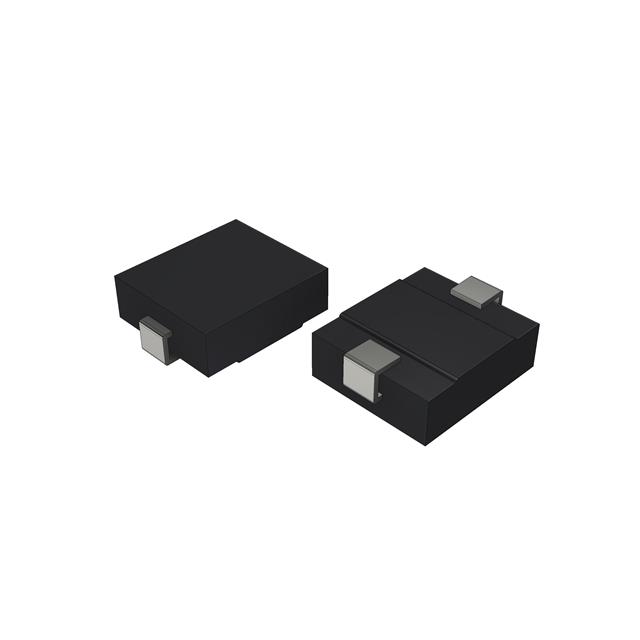

5.0SMDJ12A
ActiveHY Electronic (Cayman) Limited
SURFACE MOUNT UNI/BI-DIRECTIONAL
Deep-Dive with AI
Search across all available documentation for this part.
5.0SMDJ12A
ActiveHY Electronic (Cayman) Limited
SURFACE MOUNT UNI/BI-DIRECTIONAL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 5.0SMDJ12A |
|---|---|
| Applications | Telecom |
| Current - Peak Pulse (10/1000µs) | 252 A |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -65 °C |
| Package / Case | SMC, DO-214AB |
| Power - Peak Pulse | 5000 W |
| Power - Peak Pulse | 5 kW |
| Power Line Protection | False |
| Supplier Device Package | DO-214AB (SMCJ) |
| Type | Zener |
| Unidirectional Channels [custom] | 1 |
| Voltage - Breakdown (Min) [Min] | 13.3 V |
| Voltage - Clamping (Max) @ Ipp [Max] | 19.9 V |
| Voltage - Reverse Standoff (Typ) | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.65 | |
| 10 | $ 1.37 | |||
| 100 | $ 1.09 | |||
| 500 | $ 0.92 | |||
| 1000 | $ 0.78 | |||
| Digi-Reel® | 1 | $ 1.65 | ||
| 10 | $ 1.37 | |||
| 100 | $ 1.09 | |||
| 500 | $ 0.92 | |||
| 1000 | $ 0.78 | |||
| Tape & Reel (TR) | 1 | $ 2.75 | ||
| 5 | $ 1.09 | |||
| 500 | $ 0.91 | |||
| 3000 | $ 0.74 | |||
| 6000 | $ 0.72 | |||
| 9000 | $ 0.69 | |||
Description
General part information
5.0SMDJ12A
19.9V Clamp 252A Ipp Tvs Diode Surface Mount DO-214AB (SMCJ)
Documents
Technical documentation and resources
No documents available
