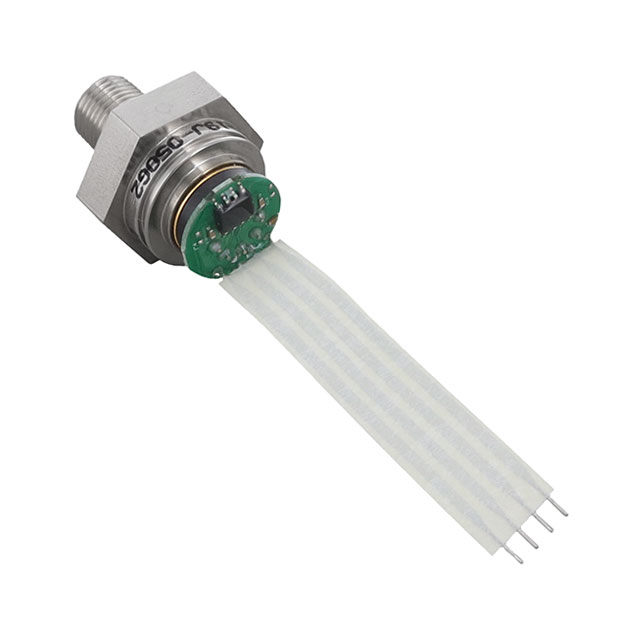

NPI-19J-050G2
ActiveAmphenol Advanced Sensors (NovaSensor)
SENSOR 50PSIG 1/8"NPT 14BIT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NPI-19J-050G2
ActiveAmphenol Advanced Sensors (NovaSensor)
SENSOR 50PSIG 1/8"NPT 14BIT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NPI-19J-050G2 |
|---|---|
| Accuracy | 1 % |
| Applications | Industrial Automation |
| Features | Temperature Compensated |
| Maximum Pressure [Max] | 100 PSI |
| Maximum Pressure [Max] | 689.48 kPa |
| Operating Pressure | 50 PSI |
| Operating Pressure | 344.74 kPa |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output | 14 b |
| Output Type | I2C |
| Package / Case | Cylinder |
| Port Size | 0.125 " |
| Port Size | 3.18 mm |
| Port Size | Male |
| Port Style | Threaded |
| Pressure Type | Gauge |
| Termination Style | Wire Leads |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 72.98 | |
| 5 | $ 67.56 | |||
| 10 | $ 65.55 | |||
| 25 | $ 63.13 | |||
| 40 | $ 61.99 | |||
| 80 | $ 60.43 | |||
Description
General part information
NPI-19J-050G2
Pressure Sensor 50PSI (344.74kPa) Gauge Male - 1/8" (3.18mm) NPT 14 b Cylinder
