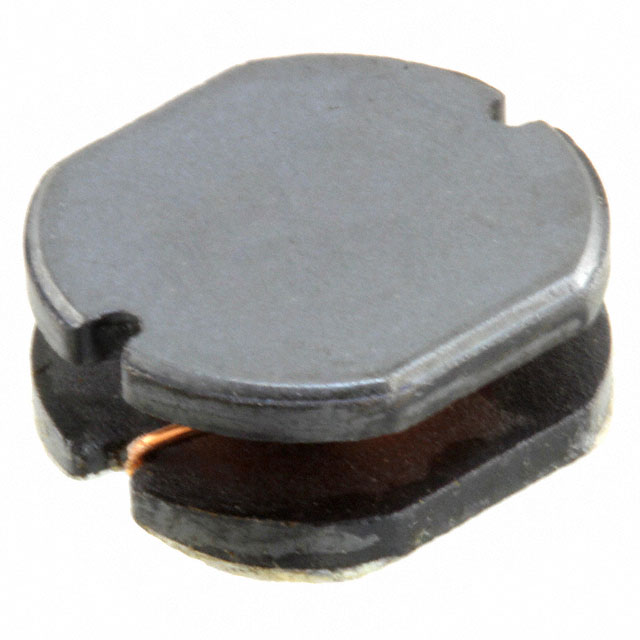

CD104NP-181KC
ActiveSumida America Components Inc.
FIXED IND 180UH 560MA 621MOHM SM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CD104NP-181KC
ActiveSumida America Components Inc.
FIXED IND 180UH 560MA 621MOHM SM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CD104NP-181KC |
|---|---|
| Current Rating (Amps) | 0.56 A |
| DC Resistance (DCR) | 621 mOhm |
| Frequency - Self Resonant | 6.53 MHz |
| Height - Seated (Max) | 4.5 mm |
| Height - Seated (Max) [Max] | 0.177 " |
| Inductance | 180 µH |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension [x] | 10 mm |
| Size / Dimension [x] | 0.394 " |
| Size / Dimension [y] | 9 mm |
| Size / Dimension [y] | 0.354 in |
| Tolerance | 10 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1000 | $ 0.79 | |
Description
General part information
CD104NP-181KC
180 µH Unshielded Inductor 560 mA 621mOhm Max Nonstandard
