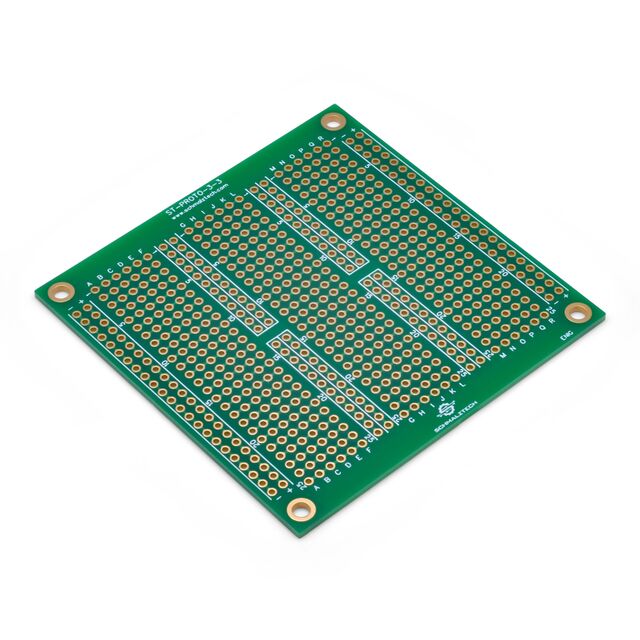

ST-PROTO-3-3
ActiveSchmalzTech, LLC
BREADBOARD GENERAL PURPOSE PTH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ST-PROTO-3-3 |
|---|---|
| Board Thickness | 1.6 mm |
| Board Thickness | 0.063 in |
| Circuit Pattern | Pad Per Hole (Round) |
| Hole Diameter [diameter] | 1.02 mm |
| Hole Diameter [diameter] | 0.04 in |
| Material | FR4 Epoxy Glass |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Plating | Plated Through Hole (PTH) |
| Proto Board Type | Breadboard, General Purpose |
| Size / Dimension [x] | 76.2 mm |
| Size / Dimension [x] | 3 " |
| Size / Dimension [y] | 3 " |
| Size / Dimension [y] | 76.2 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 5.99 | |
| 50 | $ 5.74 | |||
| 100 | $ 5.49 | |||
Description
General part information
ST-PROTO-3-3
Breadboard, General Purpose Plated Through Hole (PTH) Pad Per Hole (Round) 0.100" (2.54mm)
