BC-CTS-152007
ActiveBoxco

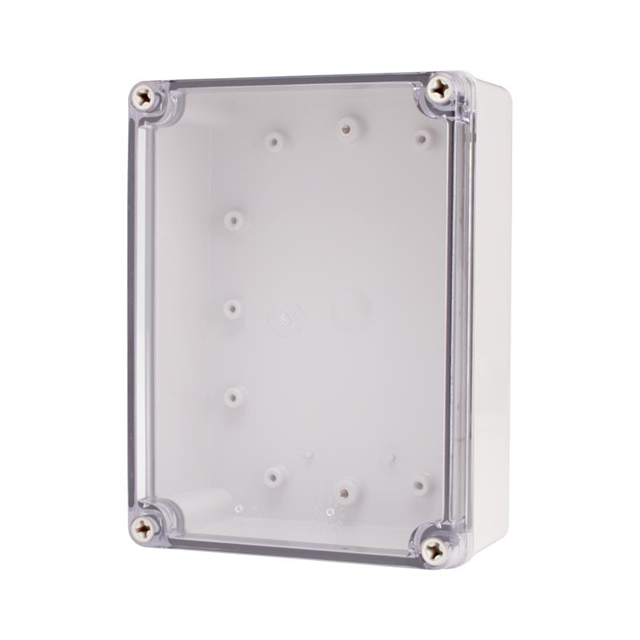

BOX PLASTIC CLR 7.87"L X 5.91"W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BC-CTS-152007
ActiveBoxco
BOX PLASTIC CLR 7.87"L X 5.91"W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BC-CTS-152007 |
|---|---|
| Area (L x W) | 46.5 in² |
| Area (L x W) | 300 cm² |
| Color | Light Gray, Clear Cover |
| Container Type | Box |
| Design | Lift-Off Screw Cover |
| Features | Sealing Gasket, Wall Mount, Flame Retardant |
| Height [z] | 75 mm |
| Height [z] | 2.953 in |
| Material | Plastic, Polycarbonate/Fiberglass |
| Material Flammability Rating | UL94 V-0, UL94 5VA, UL94 HB |
| Ratings | NEMA 6, IP66, UL 508A, NEMA 4X, IP67 |
| Size / Dimension [x] | 7.874 in |
| Size / Dimension [x] | 200 mm |
| Size / Dimension [y] | 5.906 " |
| Size / Dimension [y] | 150 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 27.63 | |
Description
General part information
BC-CTS-152007
Box Plastic, Polycarbonate/Fiberglass Light Gray, Clear Cover Lift-Off Screw Cover 7.874" L x 5.906" W (200.00mm x 150.00mm) X 2.953" (75.00mm)
