LFXTAL065460
ActiveIQD FREQUENCY PRODUCTS
CRYSTAL 30.0000MHZ 10PF SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LFXTAL065460
ActiveIQD FREQUENCY PRODUCTS
CRYSTAL 30.0000MHZ 10PF SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LFXTAL065460 |
|---|---|
| ESR (Equivalent Series Resistance) | 40 Ohms |
| Frequency | 30 MHz |
| Frequency Stability | 20 ppm |
| Frequency Tolerance | 10 ppm |
| Height - Seated (Max) [Max] | 0.039 " |
| Height - Seated (Max) [Max] | 1 mm |
| Load Capacitance | 10 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |

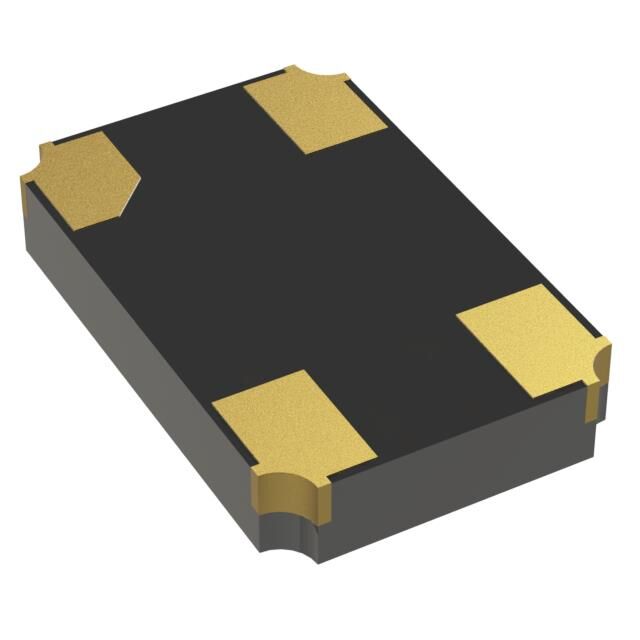

| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 0.197 in |
| Size / Dimension [x] | 5 mm |
| Size / Dimension [y] | 0.126 " |
| Size / Dimension [y] | 3.2 mm |
| Type | MHz Crystal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.02 | |
| Digi-Reel® | 1 | $ 1.02 | ||
| Tape & Reel (TR) | 1000 | $ 0.59 | ||
Description
General part information
LFXTAL065460
30 MHz ±10ppm Crystal 10pF 40 Ohms 4-SMD, No Lead
