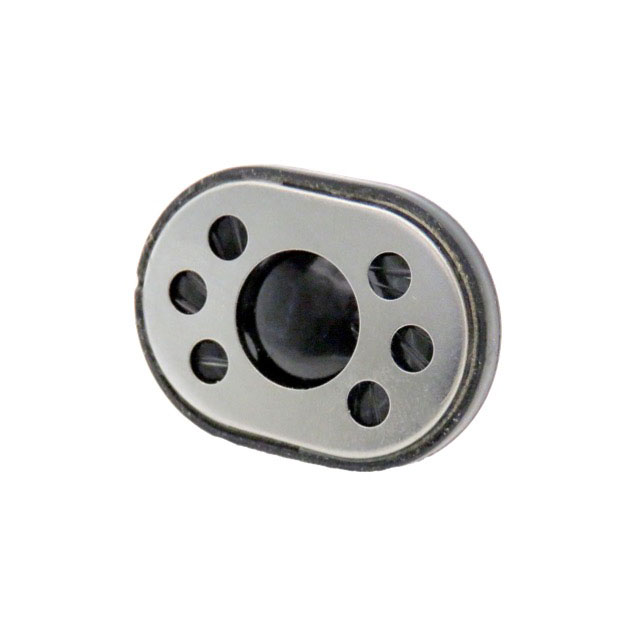

SW350608-1
ActiveDB Unlimited
SPEAKER 8OHM 1.2W TOP PORT 90DB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SW350608-1
ActiveDB Unlimited
SPEAKER 8OHM 1.2W TOP PORT 90DB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SW350608-1 |
|---|---|
| Efficiency - dBA | 90 dBA |
| Efficiency - Testing | 100 mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 600 Hz |
| Frequency Range [Max] | 10 kHz |
| Frequency Range [Min] | 600 Hz |
| Height - Seated (Max) [Max] [z] | 5.2 mm |
| Height - Seated (Max) [Max] [z] | 0.205 in |
| Impedance | 8 Ohms |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -20 C |
| Port Location | Top |
| Power - Max [Max] | 1.5 W |
| Power - Rated | 1.2 W |
| Shape | Oval |
| Size / Dimension [x] | 1.378 " |
| Size / Dimension [x] | 35 mm |
| Size / Dimension [y] | 25 mm |
| Size / Dimension [y] | 0.984 in |
| Technology | Magnetic |
| Termination | Solder Pads |
| Type | General Purpose |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 3.14 | |
| 10 | $ 2.56 | |||
| 25 | $ 2.51 | |||
Description
General part information
SW350608-1
8 Ohms General Purpose Speaker 1.2 W 600 Hz ~ 10 kHz Top Oval
