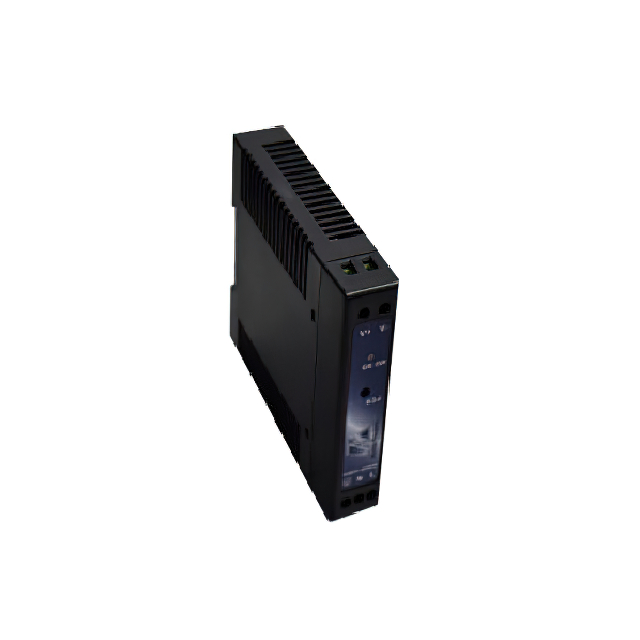

DMP1-24006
ActiveACME ELECTRIC
AC/DC DIN RAIL SUPPLY 24V 16W
Deep-Dive with AI
Search across all available documentation for this part.
DMP1-24006
ActiveACME ELECTRIC
AC/DC DIN RAIL SUPPLY 24V 16W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DMP1-24006 |
|---|---|
| AC Voltage - Input [Max] | 264 VAC |
| AC Voltage - Input [Min] | 90 VAC |
| Applications | Industrial, ITE (Commercial) |
| Approval Agency | cULus, CE |
| Current - Output (Max) [Max] | 680 mA |
| Efficiency | 81 % |
| Features | Adjustable Output, Universal Input |
| Input Type | AC |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 16 W |
| Size / Dimension [x] | 89.9 mm |
| Size / Dimension [x] | 3.54 in |
| Size / Dimension [y] | 0.9 " |
| Size / Dimension [y] | 22.9 mm |
| Size / Dimension [z] | 102.1 mm |
| Size / Dimension [z] | 4.02 " |
| Standard Number | 60950-1, UL 508 |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 28.75 | |
Description
General part information
DMP1-24006
AC/DC DIN RAIL SUPPLY 24V 16W
Documents
Technical documentation and resources
No documents available
