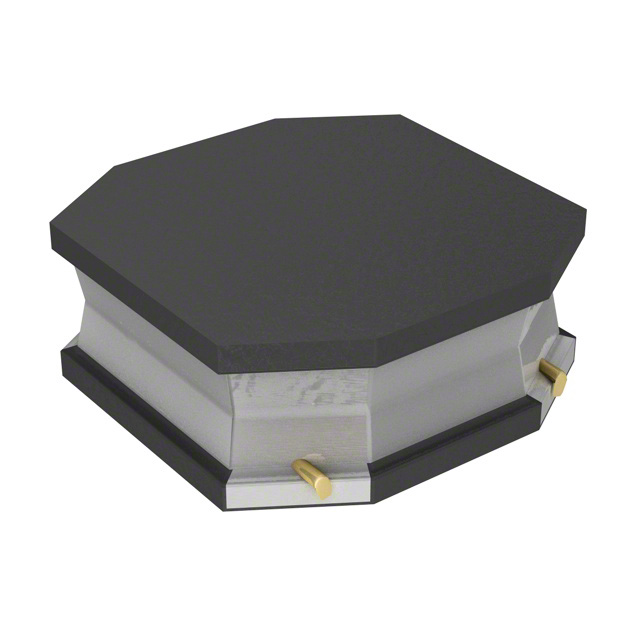

VLS3012T-3R3M1R3
ObsoleteEPCOS - TDK Electronics
FIXED IND 3.3UH 1.3A 120MOHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VLS3012T-3R3M1R3
ObsoleteEPCOS - TDK Electronics
FIXED IND 3.3UH 1.3A 120MOHM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VLS3012T-3R3M1R3 |
|---|---|
| Current - Saturation (Isat) | 1.3 A |
| Current Rating (Amps) | 1.3 A |
| DC Resistance (DCR) | 120 mOhm |
| Height - Seated (Max) [Max] | 1.2 mm |
| Height - Seated (Max) [Max] | 0.047 in |
| Inductance | 3.3 µH |
| Inductance Frequency - Test | 1 MHz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension [x] | 0.118 in |
| Size / Dimension [x] | 3 mm |
| Size / Dimension [y] | 3 mm |
| Size / Dimension [y] | 0.118 in |
| Tolerance | 20 % |
| Type | Wirewound |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
VLS3012T-3R3M1R3
3.3 µH Shielded Wirewound Inductor 1.3 A 120mOhm Max Nonstandard
