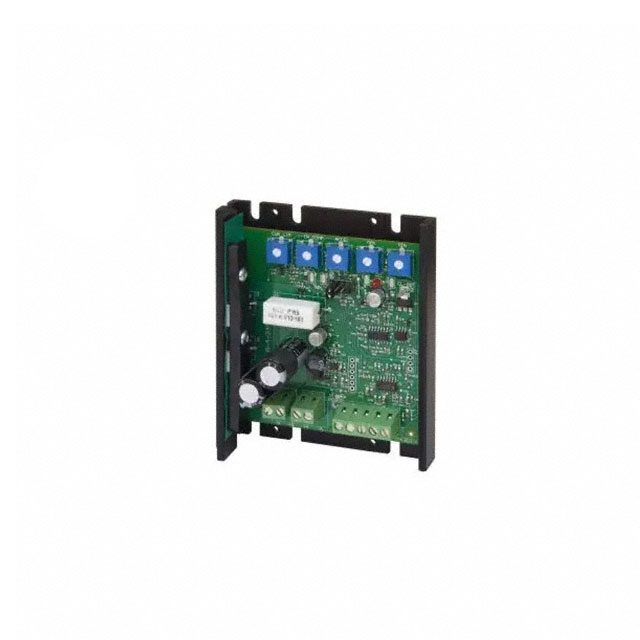

65E20C
ActiveDart Controls
LOW VOLTAGE PWM DC DRIVE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
65E20C
ActiveDart Controls
LOW VOLTAGE PWM DC DRIVE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 65E20C |
|---|---|
| Control / Drive Type | Brushed |
| Current - Output | 20 A |
| Motor Type | Brushed DC |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -30 ░C |
| Type | Board |
| Voltage - Load | 48 VDC |
| Voltage - Load [Max] | 12 V |
| Voltage - Load [Min] | 0 V |
| Voltage - Supply [Max] | 48 V |
| Voltage - Supply [Min] | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 299.00 | |
| 2 | $ 269.10 | |||
| 5 | $ 239.20 | |||
Description
General part information
65E20C
Brushed 12 ~ 48VDC Supply 20A 0 ~ 12VDC, 48VDC Load
Documents
Technical documentation and resources
