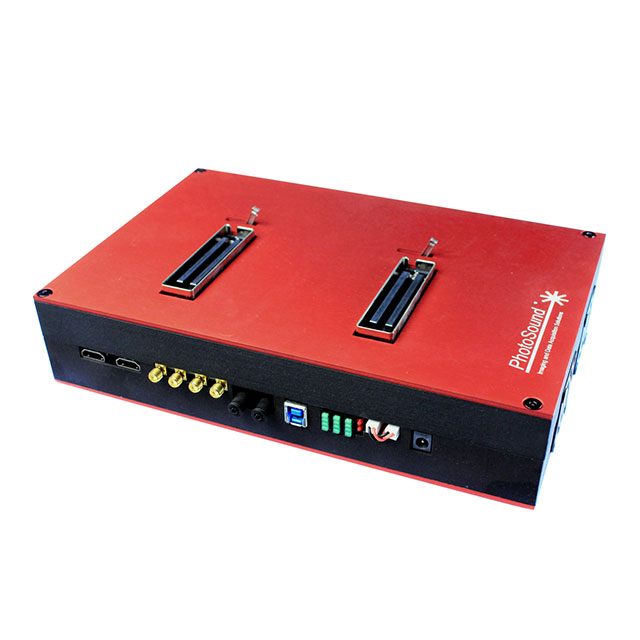

LEGION ADC WITH TWO PREAMPLIFIERS QLC 260
ActivePhotosound Technologies
256-CHANNEL ADC EVAL BOARD
Deep-Dive with AI
Search across all available documentation for this part.
LEGION ADC WITH TWO PREAMPLIFIERS QLC 260
ActivePhotosound Technologies
256-CHANNEL ADC EVAL BOARD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LEGION ADC WITH TWO PREAMPLIFIERS QLC 260 |
|---|---|
| Bidirectional Channels | 0 |
| Bus Connection | USB 3.0 |
| Counter/Timers | 2 |
| Front Connection | Master/Slave Config, Trigger In/Out (2x), Optical Trigger (2x) |
| Function | Amplified Data Acquisition System |
| Input Range | 1 V |
| Input Resolution | 12 Bits |
| Number of Inputs and Type | 256 |
| Number of Outputs and Type | 3 |
| Output Range | 3.3 V, 5 V |
| Output Resolution | 12 Bits |
| Sampling Rate (Per Second) | 40M |
| Type | Variable Gain |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 50000.00 | |
Description
General part information
LEGION ADC WITH TWO PREAMPLIFIERS QLC 260
Amplified Data Acquisition System Variable Gain USB 3.0 Trigger In/Out (2x), Optical Trigger (2x), Master/Slave Config
Documents
Technical documentation and resources
No documents available
