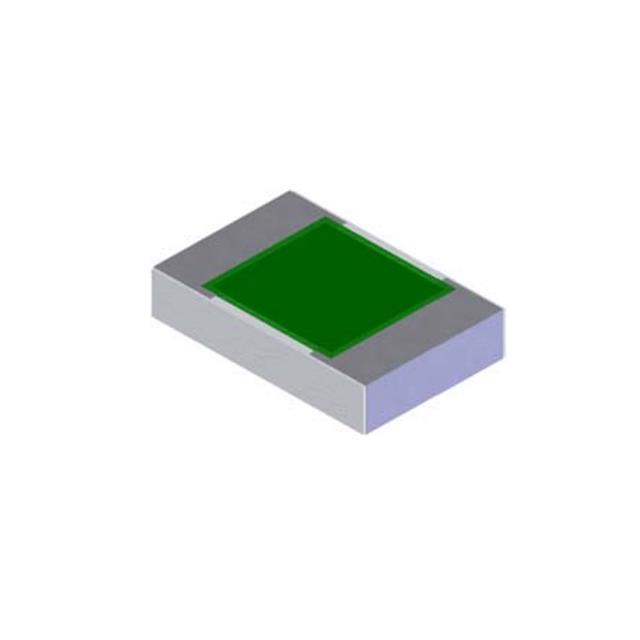

RP0505CT-50R0GN-96TR
ActiveVishay Barry
RES 50 OHM 2% 3/4W 0502
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RP0505CT-50R0GN-96TR
ActiveVishay Barry
RES 50 OHM 2% 3/4W 0502
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RP0505CT-50R0GN-96TR |
|---|---|
| Composition | Thick Film |
| Height - Seated (Max) | 0.51 mm |
| Height - Seated (Max) [Max] | 0.02 in |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 0502 |
| Package / Case | 1406 Metric |
| Power (Watts) | 0.75 W |
| Power (Watts) | 0.75 W |
| Resistance | 50 Ohms |
| Size / Dimension [x] | 1.27 mm |
| Size / Dimension [x] | 0.05 in |
| Size / Dimension [y] | 1.27 mm |
| Size / Dimension [y] | 0.05 " |
| Tolerance | 2 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 8.33 | |
| 10 | $ 5.55 | |||
| 50 | $ 4.49 | |||
| 100 | $ 4.16 | |||
| Digi-Reel® | 1 | $ 8.33 | ||
| 10 | $ 5.55 | |||
| 50 | $ 4.49 | |||
| 100 | $ 4.16 | |||
| Tape & Reel (TR) | 500 | $ 3.28 | ||
| 1000 | $ 3.13 | |||
| 1500 | $ 3.05 | |||
| 2500 | $ 2.99 | |||
Description
General part information
RP0505CT-50R0GN-96TR
50 Ohms ±2% 0.75W, 3/4W Chip Resistor 0502 (1406 Metric) Thick Film
Documents
Technical documentation and resources
