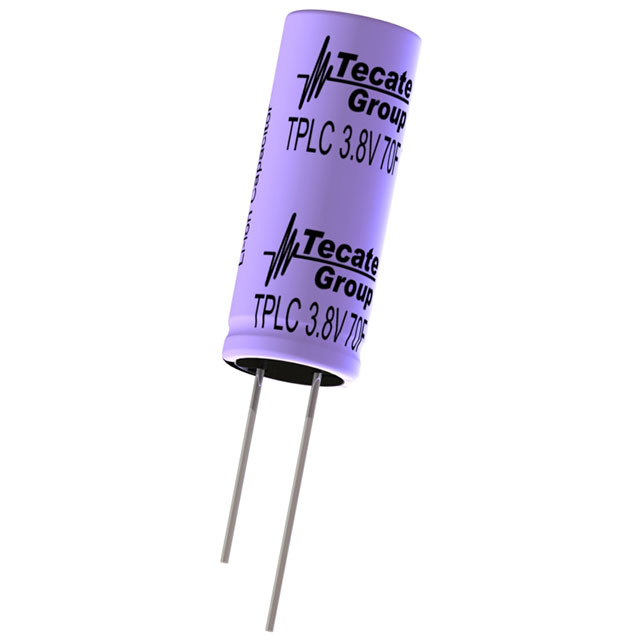

TPLC-3R8/70MR10X25
ActiveTecate Group
CAP LITH HYBRID 70F 3.8V T/H
Deep-Dive with AI
Search across all available documentation for this part.
TPLC-3R8/70MR10X25
ActiveTecate Group
CAP LITH HYBRID 70F 3.8V T/H
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TPLC-3R8/70MR10X25 |
|---|---|
| Capacitance | 70 F |
| ESR (Equivalent Series Resistance) | 105 mOhm |
| Height - Seated (Max) [Max] [z] | 1.063 in |
| Height - Seated (Max) [Max] [z] | 27 mm |
| Lead Spacing | 5 mm |
| Lead Spacing | 0.197 in |
| Lifetime @ Temp. | 1000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -15 °C |
| Package / Case | Radial, Can |
| Size / Dimension [diameter] | 10 mm |
| Size / Dimension [diameter] | 0.394 in |
| Termination | PC Pins |
| Tolerance | 20 % |
| Voltage - Rated | 3.8 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 6.70 | |
| 10 | $ 4.59 | |||
| 40 | $ 3.84 | |||
| 80 | $ 3.55 | |||
| 440 | $ 3.05 | |||
| 945 | $ 2.88 | |||
| 2400 | $ 2.73 | |||
Description
General part information
TPLC-3R8/70MR10X25
70 F (EDLC) Supercapacitor 3.8 V Radial, Can 105mOhm @ 1kHz 1000 Hrs @ 70°C
