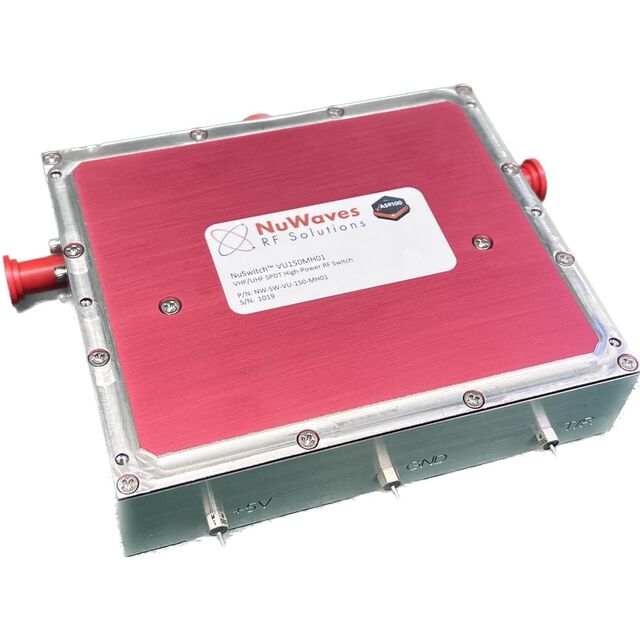

NW-SW-VU-150-MH01
ActiveNuWaves RF Solutions
IC RF SWITCH SPDT 500MHZ
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NW-SW-VU-150-MH01 |
|---|---|
| Circuit | SPDT |
| Frequency Range [Max] | 500 MHz |
| Frequency Range [Min] | 50 MHz |
| Impedance | 50 Ohms |
| Insertion Loss | 0.25 dB |
| Isolation | 39 dB |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Module, SMA Connectors |
| RF Type | General Purpose |
| Test Frequency | 500 MHz |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 6249.00 | |
Description
General part information
NW-SW-VU-150-MH01
RF Switch IC General Purpose SPDT 50Ohm
