Technical Specifications
Parameters and characteristics for this part
| Specification | W5280-8PG-P-318 |
|---|---|
| Backshell Material, Plating | Thermoplastic |
| Cable Opening [Max] [custom] | 0.2 in |
| Cable Opening [Max] [custom] | 5.08 mm |
| Cable Opening [Min] [custom] | 4.57 mm |
| Cable Opening [Min] [custom] | 0.18 in |
| Color | Black |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | Varies by Wire Gauge |
| Fastening Type | Bayonet Lock |
| Features | UV Resistant, Backshell |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Thermoplastic |
| Material Flammability Rating | UL94 HB |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 8 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shielding | Unshielded |
| Termination | Crimp |
| Voltage Rating | 600 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 13.38 | |
Description
General part information

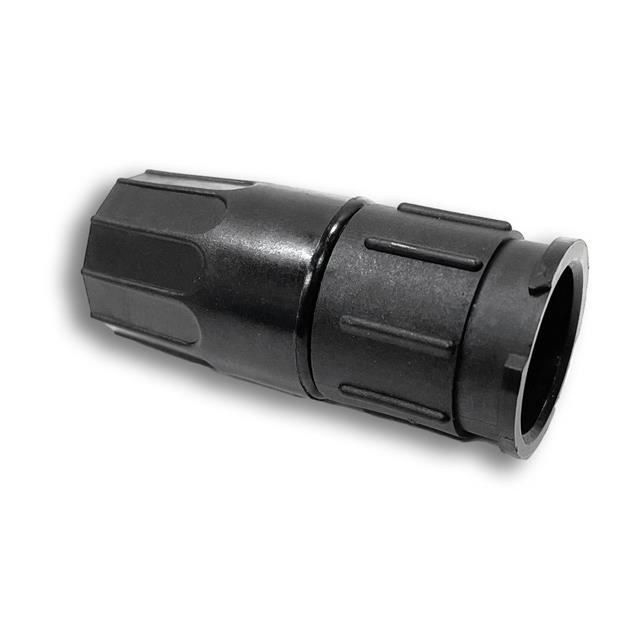

W5280-8PG-P-318
8 Position Circular Connector Plug, Male Pins Crimp
