HSTBD1/2
ActiveHoff-Trex®
HEATSHRINK 3:1, 1/2" X100'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HSTBD1/2
ActiveHoff-Trex®
HEATSHRINK 3:1, 1/2" X100'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HSTBD1/2 |
|---|---|
| Color | Black |
| Features | Fluid Resistant, Chemical Resistant |
| Inner Diameter - Recovered [diameter] | 0.165 in |
| Inner Diameter - Recovered [diameter] | 4.19 mm |
| Inner Diameter - Supplied [diameter] | 12.7 mm |
| Inner Diameter - Supplied [diameter] | 0.5 in |
| Material | Polyolefin (PO) |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Recovered Wall Thickness | 1.7 mm |
| Recovered Wall Thickness | 0.067 in |
| Shelf Life | 24 Months |
| Shrink Temperature | 70 °C |
| Shrinkage Ratio [Max] | 3 |
| Shrinkage Ratio [Min] | 1 |
| Storage/Refrigeration Temperature | Room Temperature |
| Type | Tubing, Flexible |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 253.86 | |
| 2 | $ 241.16 | |||
| 4 | $ 228.47 | |||
Description
General part information
HSTBD1/2

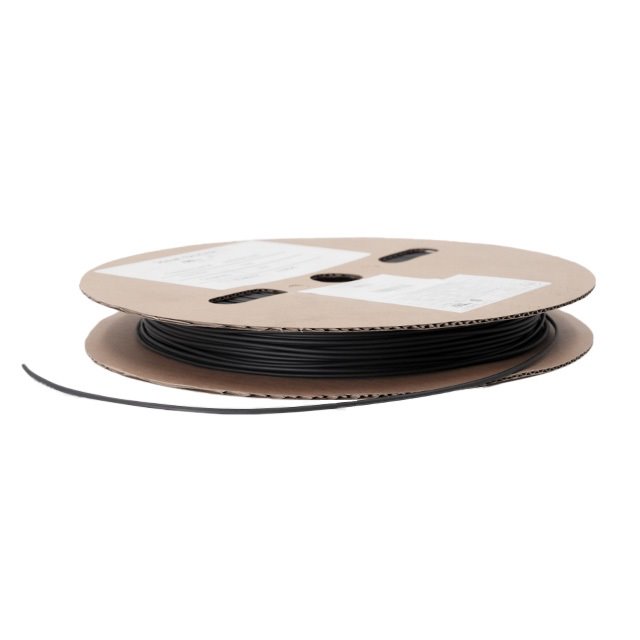

Heat Shrink Tubing, Flexible 0.500" (12.70mm) 3 to 1 Black
Documents
Technical documentation and resources
