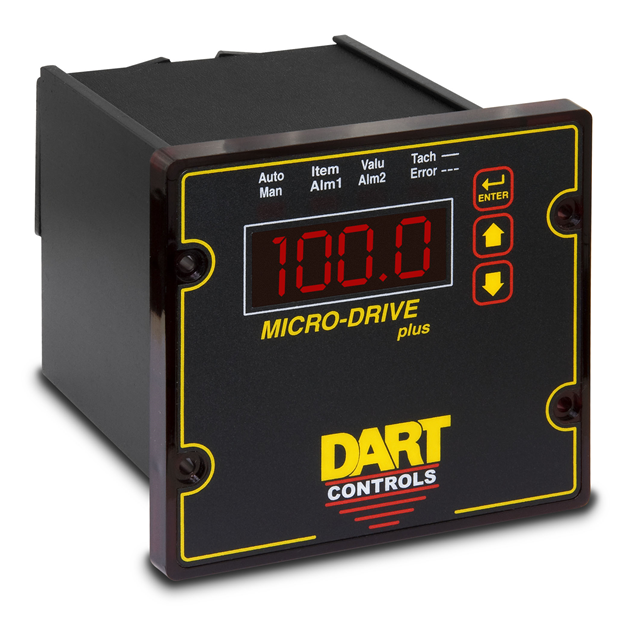

MD50P
ActiveDart Controls
CLOSED LOOP DIGITAL SCR CONTROL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MD50P
ActiveDart Controls
CLOSED LOOP DIGITAL SCR CONTROL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MD50P |
|---|---|
| Control / Drive Type | Brushed |
| Current - Output | 10 A |
| Motor Type | Brushed DC |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 45 °C |
| Operating Temperature [Min] | -10 °C |
| Type | Module |
| Voltage - Load | 180 VDC |
| Voltage - Load [Max] | 90 V |
| Voltage - Load [Min] | 0 V |
| Voltage - Supply [Max] | 240 VAC |
| Voltage - Supply [Min] | 120 VAC/DC |
| Wattage - Load | 745.7 W |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 899.00 | |
| 2 | $ 809.10 | |||
| 5 | $ 719.20 | |||
Description
General part information
MD50P
Brushed 120 ~ 240VAC Supply 10A 0 ~ 90VDC, 180VDC Load
Documents
Technical documentation and resources
