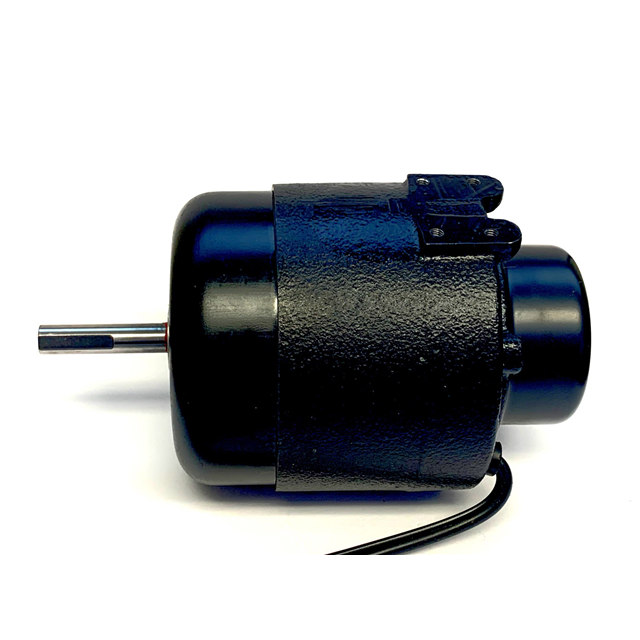

ESP-OL75EM4
ActiveElectric Motors & Specialties
75 SHADED POLE MTR.
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ESP-OL75EM4
ActiveElectric Motors & Specialties
75 SHADED POLE MTR.
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ESP-OL75EM4 |
|---|---|
| Approval Agency | UL, cUL |
| Diameter - Shaft [diameter] | 0.375 in |
| Diameter - Shaft [diameter] | 9.53 mm |
| Function | Standard |
| Length - Shaft and Bearing [x] | 45.21 mm |
| Length - Shaft and Bearing [x] | 1.78 in |
| Power - Rated | 75 W |
| RPM | 1500 RPM |
| Size / Dimension | 3.87 Dia |
| Size / Dimension | 98.3 mm |
| Termination Style | Wire Leads |
| Type | AC Motor |
| Voltage - Rated | 460 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 225.64 | |
Description
General part information
ESP-OL75EM4
AC Motor Standard 1500 RPM 75W 460V
