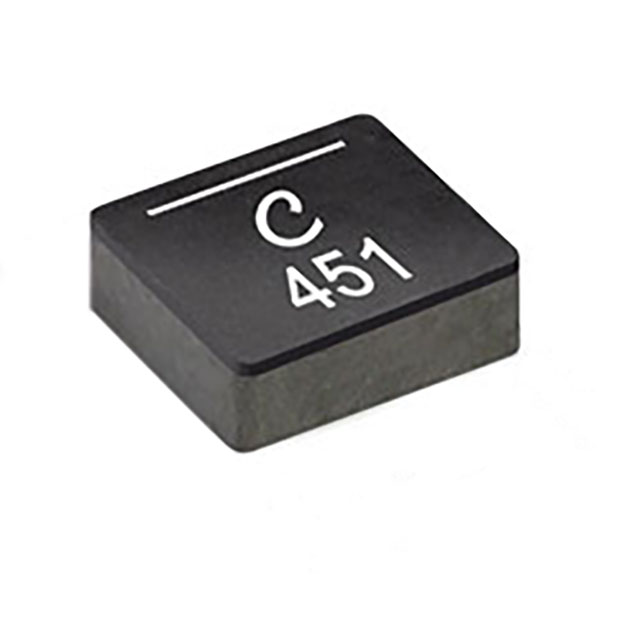

XGL3515-561MEC
ActiveCoilcraft
FIXED INDUCTOR 0.56UH SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XGL3515-561MEC
ActiveCoilcraft
FIXED INDUCTOR 0.56UH SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XGL3515-561MEC |
|---|---|
| Current - Saturation (Isat) | 6.6 A |
| Current Rating (Amps) | 10.9 A |
| DC Resistance (DCR) [Max] | 11.8 mOhm |
| Frequency - Self Resonant | 100 MHz |
| Height - Seated (Max) [Max] | 1.5 mm |
| Height - Seated (Max) [Max] [z] | 0.059 " |
| Inductance | 560 nH |
| Inductance Frequency - Test | 1 MHz |
| Material - Core | Metal Composite |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Nonstandard |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension [x] | 0.138 " |
| Size / Dimension [x] | 3.5 mm |
| Size / Dimension [y] | 0.126 " |
| Size / Dimension [y] | 3.2 mm |
| Tolerance | 20 % |
| Type | Molded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Strip | 1 | $ 2.35 | |
| 100 | $ 2.15 | |||
| 250 | $ 1.61 | |||
| 500 | $ 0.96 | |||
Description
General part information
XGL3515-561MEC
560 nH Shielded Molded Inductor 10.9 A 11.8mOhm Max Nonstandard
