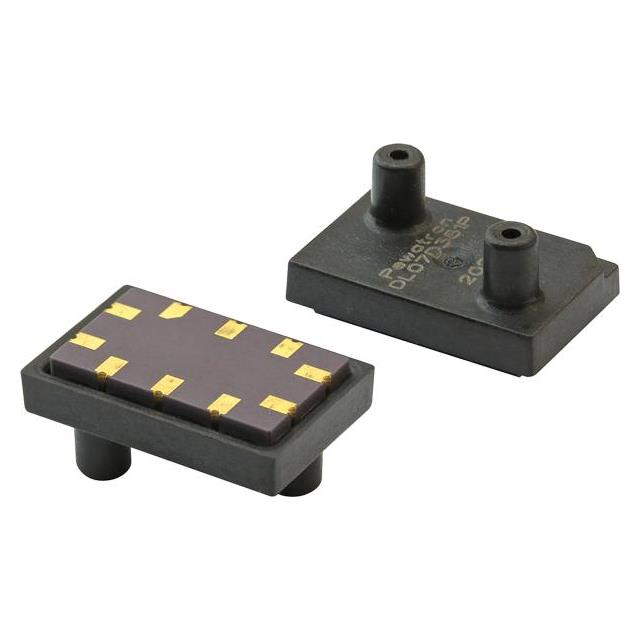

52DL-501BD-381P
ActiveAngst+Pfister Sensors and Power AG
SMD 3,3V PRESSURE SENSOR 500MBA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
52DL-501BD-381P
ActiveAngst+Pfister Sensors and Power AG
SMD 3,3V PRESSURE SENSOR 500MBA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 52DL-501BD-381P |
|---|---|
| Accuracy | 0.25 % |
| Applications | Board Mount |
| Features | Vertical Flat Ports |
| Maximum Pressure | 150 kPa |
| Maximum Pressure | 21 PSI |
| Mounting Type | Surface Mount |
| Operating Pressure | 7 PSI |
| Operating Pressure | 50 kPa |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Output | I2C |
| Output Type | I2C |
| Package / Case | 8-SMD, No Lead |
| Port Size | Dual, Male, Tube |
| Port Size | 2.2 mm |
| Port Size | 0.087 " |
| Port Style | Barbless |
| Pressure Type | Differential |
| Supplier Device Package | 8-SMD |
| Termination Style | Surface Mount (SMD,SMT) |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1 | $ 16.00 | |
Description
General part information
52DL-501BD-381P
Pressure Sensor ±7PSI (±50kPa) Differential Male - 0.087" (2.2mm) Tube, Dual I2C 8-SMD, No Lead
Documents
Technical documentation and resources
