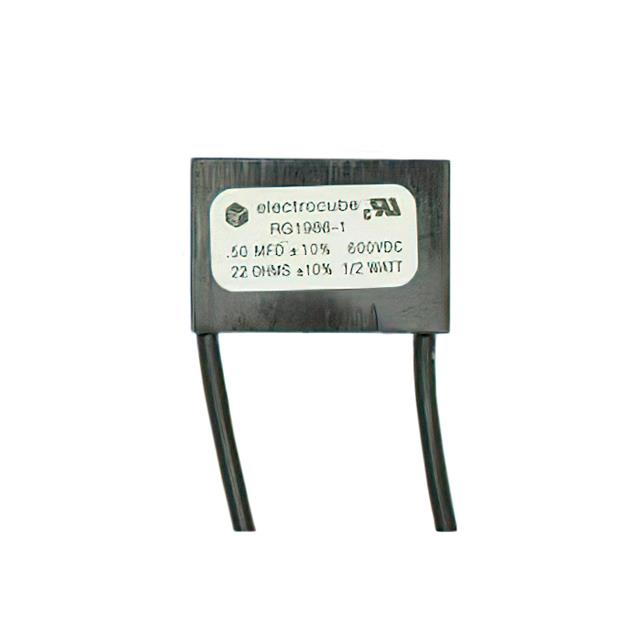

RG1986-1
ActiveElectrocube
RC NETWORK, 0.5 MFD, 22 OHM, 250
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RG1986-1
ActiveElectrocube
RC NETWORK, 0.5 MFD, 22 OHM, 250
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RG1986-1 |
|---|---|
| Applications | General Purpose |
| ESD Protection | False |
| Filter Order | 1st |
| Height [z] | 0.87 " |
| Height [z] | 22.1 mm |
| Mounting Type | Through Hole |
| Number of Channels | 1 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Radial |
| Size / Dimension [x] | 1.25 " |
| Size / Dimension [x] | 31.75 mm |
| Size / Dimension [y] | 14.73 mm |
| Size / Dimension [y] | 0.58 " |
| Technology | RC |
| Type | Low Pass |
| Values | 22 Ohms, 0.5 µF |
| Voltage - Rated | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 70.99 | |
| 10 | $ 53.91 | |||
| 25 | $ 43.21 | |||
| 50 | $ 34.79 | |||
| 100 | $ 27.75 | |||
| 250 | $ 23.20 | |||
| 500 | $ 19.33 | |||
| 1000 | $ 18.42 | |||
Description
General part information
RG1986-1
RC EMI Filter 1st Order Low Pass 1 Channel R = 22Ohm, C = 0.5µF Radial
