5271
ActiveAdafruit Industries LLC

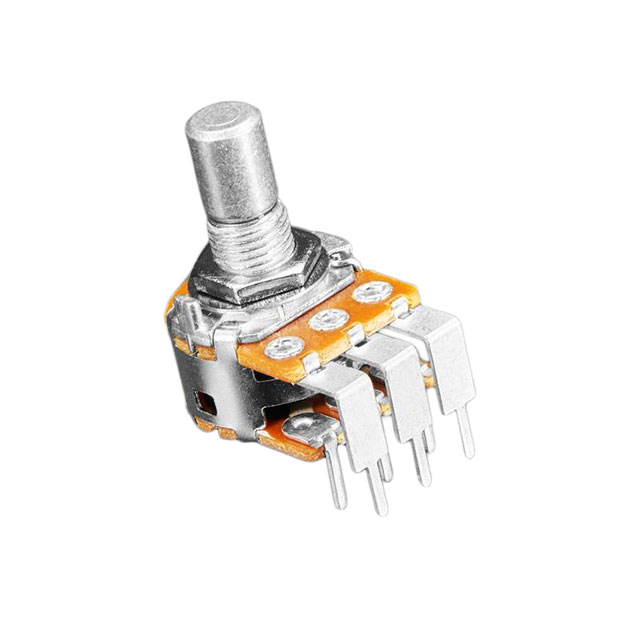

ALPHA DUAL-GANG 16MM RIGHT-ANGLE PC MOUNT - 25K AUDIO - RV16A01F-41-15R1-A25K-30H4
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5271
ActiveAdafruit Industries LLC
ALPHA DUAL-GANG 16MM RIGHT-ANGLE PC MOUNT - 25K AUDIO - RV16A01F-41-15R1-A25K-30H4
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 5271 |
|---|---|
| Actuator Diameter [diameter] | 0.236 in |
| Actuator Diameter [diameter] | 6 mm |
| Actuator Length | 15 mm |
| Actuator Length [z] | 0.591 in |
| Actuator Type | Round |
| Adjustment Type | Top Adjustment |
| Built in Switch | False |
| Bushing Thread | 0.75 |
| Bushing Thread | M7 |
| Mounting Type | Through Hole |
| Number of Gangs | 1 |
| Number of Turns | 1 |
| Power (Watts) | 0.06 W |
| Resistance (Ohms) | 25k |
| Rotation | 300 ░ |
| Size - Body | Round |
| Size - Body [diameter] | 17 mm |
| Size - Body [diameter] | 0.669 in |
| Taper | Logarithmic |
| Termination Style | PC Pins |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
5271
25k Ohm 1 Gang Logarithmic Through Hole Potentiometer 1.0 Turns 0.06W PC Pins
Documents
Technical documentation and resources
