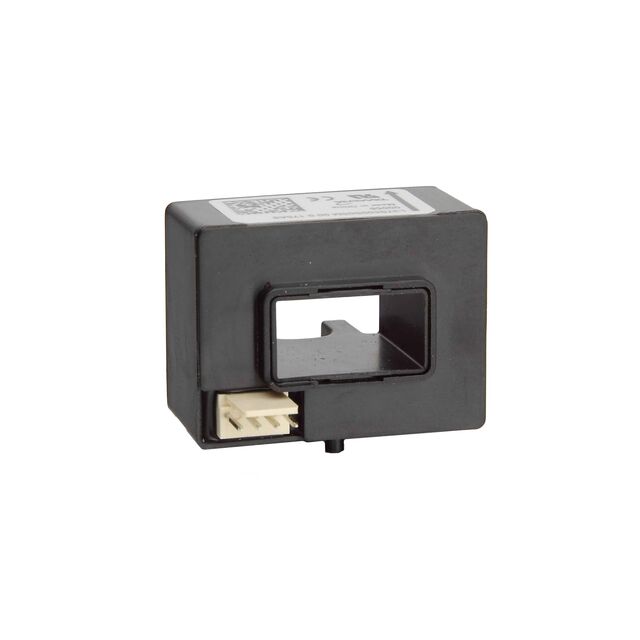

L37S600S05M
ActiveTamura
CURRENT SENSOR (600A; +5V)
Deep-Dive with AI
Search across all available documentation for this part.
L37S600S05M
ActiveTamura
CURRENT SENSOR (600A; +5V)
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | L37S600S05M |
|---|---|
| Current - Sensing | 600 A |
| Current - Supply (Max) [Max] | 20 mA |
| Frequency [Max] | 50 kHz |
| Frequency [Min] | DC |
| Linearity | 1 % |
| Mounting Type | Chassis Mount |
| Number of Channels | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | Voltage, Ratiometric |
| Package / Case | Module, Single Pass Through |
| Polarization | Bidirectional |
| Response Time | 5 µs |
| Sensor Type | Hall Effect, Open Loop |
| Voltage - Supply [Max] | 5.25 V |
| Voltage - Supply [Min] | 4.75 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 20.15 | |
| 5 | $ 16.99 | |||
| 10 | $ 15.79 | |||
| 25 | $ 14.33 | |||
| 40 | $ 13.64 | |||
| 200 | $ 11.51 | |||
| 600 | $ 10.25 | |||
Description
General part information
L37S600S05M
Current Sensor 600A 1 Channel Hall Effect, Open Loop Bidirectional Module, Single Pass Through
Documents
Technical documentation and resources
No documents available
