10033900
ActiveLAPP

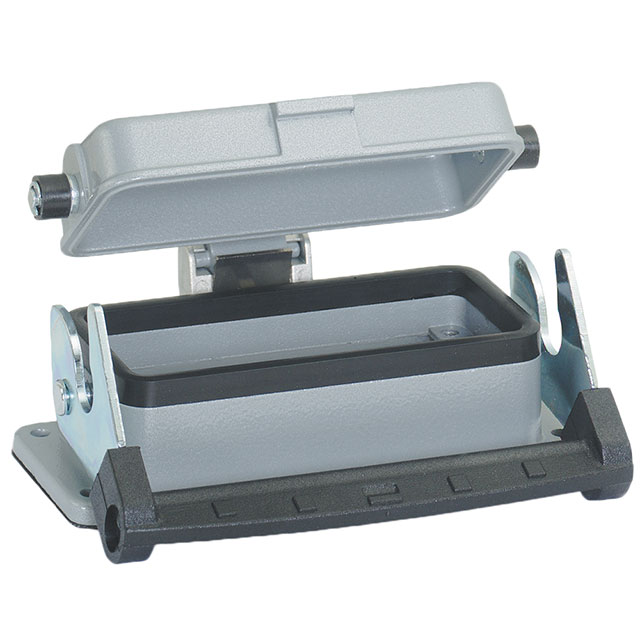

CONN BASE HB10 PNL MNT W/CVR
Deep-Dive with AI
Search across all available documentation for this part.
10033900
ActiveLAPP
CONN BASE HB10 PNL MNT W/CVR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10033900 |
|---|---|
| Connector Type | Base - Panel Mount |
| Features | Cover |
| Housing Color | Gray |
| Housing Finish | Powder Coated |
| Housing Material | Aluminum Alloy |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (1) on Base Bottom |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | HB10 |
| Size / Dimension [x] | 3.673 " |
| Size / Dimension [x] | 93.3 mm |
| Size / Dimension [y] | 43 mm |
| Size / Dimension [y] | 1.693 in |
| Size / Dimension [z] | 27.8 mm |
| Size / Dimension [z] | 1.094 in |
| Style | Bottom Entry |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 28.65 | |
| 10 | $ 27.26 | |||
Description
General part information
10033900
Base - Panel Mount Connector Bottom Entry HB10 IP65 - Dust Tight, Water Resistant
Documents
Technical documentation and resources
No documents available
