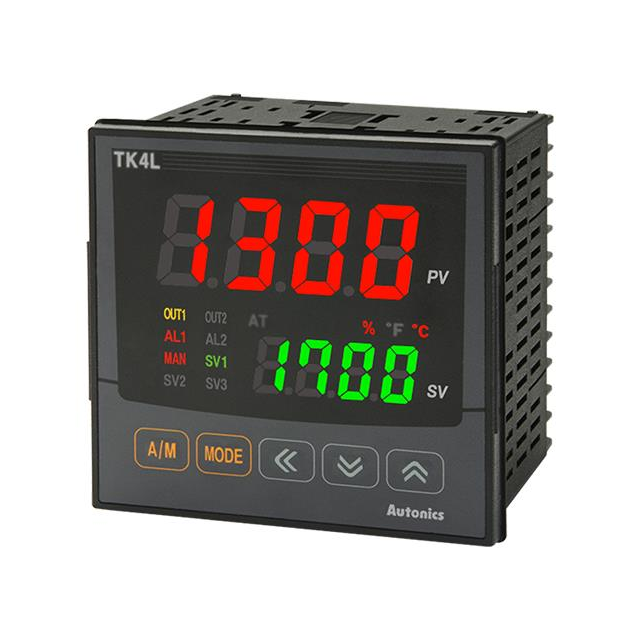

TK4L-14CN
ActiveAUTONICS
TEMP CONTROL CRNT SSR 100-240VAC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TK4L-14CN
ActiveAUTONICS
TEMP CONTROL CRNT SSR 100-240VAC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TK4L-14CN |
|---|---|
| Communications | Option Cards Available |
| Control Method | On/Off, Proportional (PID) |
| Display Characters - Height | 14 mm, 0.866 ", 22 mm, 0.551 in |
| Display Type | LED - Dual Color Characters |
| Features | Limit Function |
| Ingress Protection | IP50, IP65 |
| Input Range [Max] | 10 V, 9999 °C, 20 mA, 50 mV |
| Input Range [Min] | -1999 °C, 0 V, 0 A |
| Number of Characters Per Row | 4 |
| Number of Characters Per Row | 4 |
| Operating Temperature [Max] [custom] | 50 °C |
| Operating Temperature [Min] [custom] | -10 °C |
| Output Type | Voltage (External SSR) |
| Panel Cutout Dimensions [x] | 92 mm |
| Panel Cutout Dimensions [y] | 92 mm |
| Termination Style | Screw Terminal |
| Type | Process, Temperature Controller (Type B, C, E, G, J, K, L, N, PLII, R, S, T, U) |
| Voltage - Supply [Max] | 240 VAC |
| Voltage - Supply [Min] | 100 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 152.00 | |
Description
General part information
TK4L-14CN
Process, Temperature Controller (Type B, C, E, G, J, K, L, N, PLII, R, S, T, U) 100 ~ 240VAC Panel Mount
