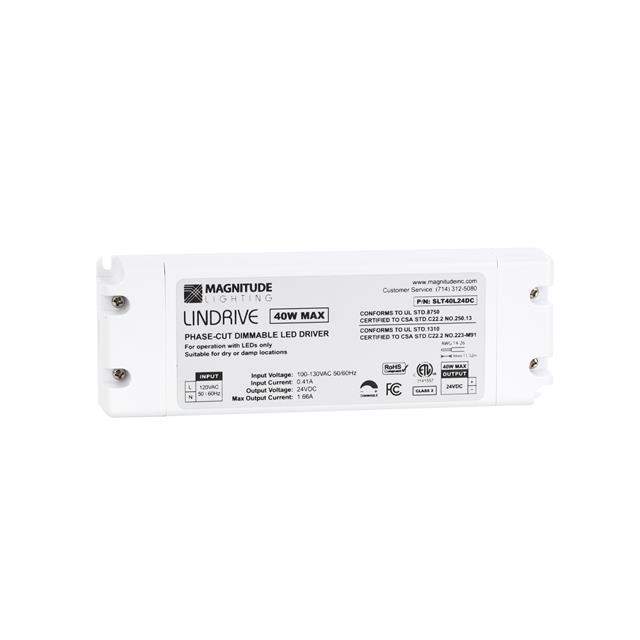

SLT40L24DC
ActiveMagnitude Lighting
40W, 120V, 24VDC, PHASE DIM, ETL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SLT40L24DC
ActiveMagnitude Lighting
40W, 120V, 24VDC, PHASE DIM, ETL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SLT40L24DC |
|---|---|
| Approval Agency | ETL, FCC |
| Current - Output (Max) [Max] | 1.67 A |
| Dimming | MLV, ELV, TRIAC |
| Features | SS, OVP, OTP, OCP |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | -25 °C |
| Power (Watts) | 40 W |
| Ratings | IP66 |
| Size / Dimension [x] | 7 " |
| Size / Dimension [x] | 177.8 mm |
| Size / Dimension [y] | 61 mm |
| Size / Dimension [y] | 2.4 " |
| Size / Dimension [z] | 0.94 in |
| Size / Dimension [z] | 23.9 mm |
| Standard Number | C22.2 250-13.12, 8750 |
| Termination Style | Terminal Block |
| Topology | AC DC Converter |
| Type | Constant Voltage |
| Voltage - Input (Max) [Max] | 130 VAC |
| Voltage - Input (Min) [Min] | 100 VAC |
| Voltage - Output | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 81.59 | |
| 5 | $ 77.88 | |||
| 10 | $ 74.17 | |||
Description
General part information
SLT40L24DC
1.67A 24V Constant Voltage LED Driver AC DC Converter Topology 1 Output
