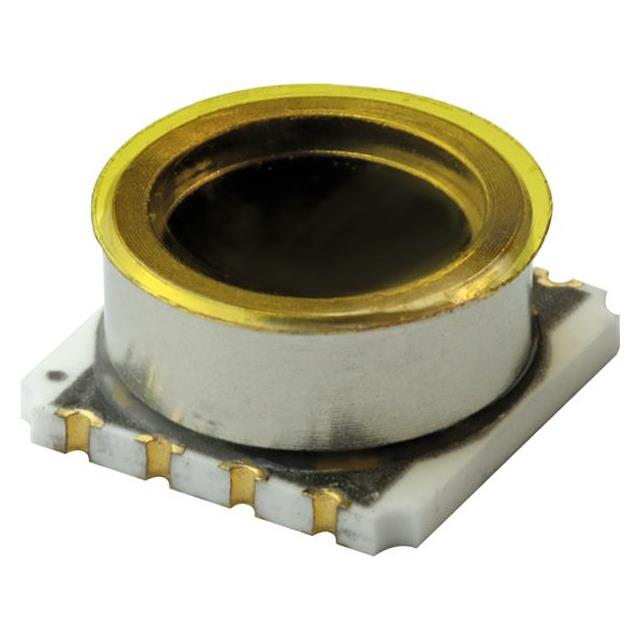

PBM220-A14NDR
ActiveAngst+Pfister Sensors and Power AG
ABS. PRESSURE SENSOR 1.4MPA 3V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PBM220-A14NDR |
|---|---|
| Accuracy | 20 hPa |
| Applications | Board Mount |
| Features | Temperature Compensated |
| Maximum Pressure | 435.11 PSI |
| Maximum Pressure | 3000 kPa |
| Mounting Type | Surface Mount |
| Operating Pressure [Max] | 1400 kPa |
| Operating Pressure [Max] | 203 PSI |
| Operating Pressure [Min] | 0 bar |
| Operating Pressure [Min] | 0 PSI |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | 24 b |
| Output Type | I2C, SPI |
| Package / Case | 4-SMD Module |
| Port Style | No Port |
| Termination Style | Surface Mount (SMD,SMT) |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 1.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1 | $ 19.00 | |
| 10 | $ 17.00 | |||
Description
General part information
PBM220-A14NDR
Pressure Sensor 0PSI ~ 203PSI (0kPa ~ 1400kPa) Absolute 24 b 4-SMD Module
