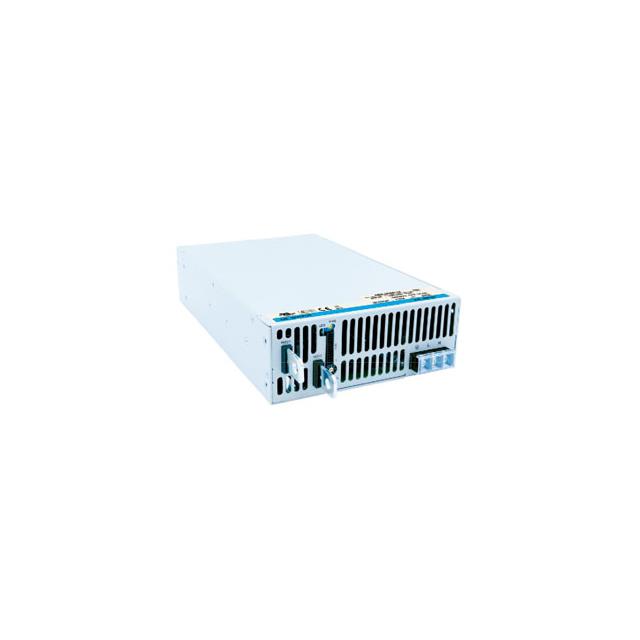

AEK-3000-250
ActiveCotek
AC/DC CONVERTER 250V 3000W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AEK-3000-250
ActiveCotek
AC/DC CONVERTER 250V 3000W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AEK-3000-250 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cURus, CE, TUV |
| Current - Output 1 | 12 A |
| Efficiency | 93 % |
| Features | Remote On/Off, Adjustable Output, I2C Interface, Standby Output, PFC, Load Sharing, DC Input Capable, Universal Input |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 °C |
| Power (Watts) | 3000 W |
| Size / Dimension [x] | 11.02 in |
| Size / Dimension [x] | 279.9 mm |
| Size / Dimension [y] | 169.9 mm |
| Size / Dimension [y] | 6.69 in |
| Size / Dimension [z] | 2.52 " |
| Size / Dimension [z] | 64 mm |
| Standard Number | 62368-1 |
| Type | Enclosed |
| Voltage - Input [Max] | 370 VDC, 264 VAC |
| Voltage - Input [Min] | 127 VDC, 90 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 1344.35 | |
Description
General part information
AEK-3000-250
Enclosed AC DC Converters 1 Output 250V 90 ~ 264 VAC, 127 ~ 370 VDC Input
