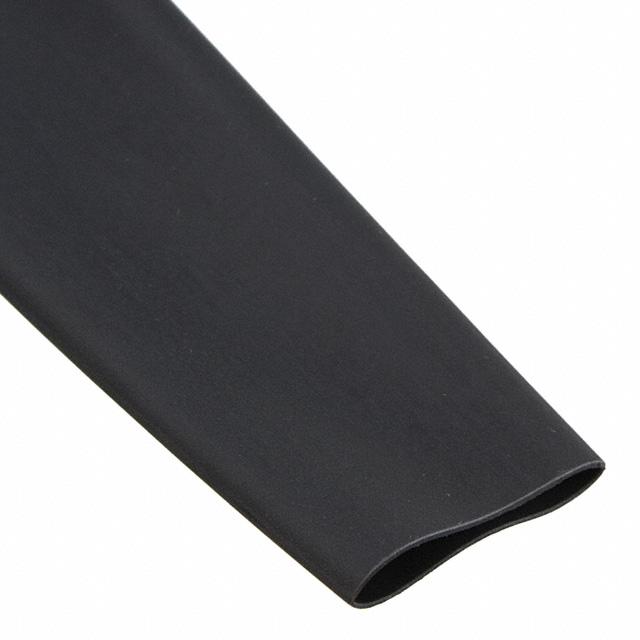

W3B2S 3/8 BLACK SPL
ActiveSumitomo Electric Interconnect Products, Inc.
SUMITUBE W3B2S-HEAT-SHRINKA FEET
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
W3B2S 3/8 BLACK SPL
ActiveSumitomo Electric Interconnect Products, Inc.
SUMITUBE W3B2S-HEAT-SHRINKA FEET
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | W3B2S 3/8 BLACK SPL |
|---|---|
| Color | Black |
| Features | Adhesive Lined, Flame Retardant |
| Inner Diameter - Recovered | 3 mm |
| Inner Diameter - Recovered | 0.118 in |
| Inner Diameter - Supplied [diameter] | 0.374 in |
| Inner Diameter - Supplied [diameter] | 9.5 mm |
| Length | Enter Number of Feet in Order Quantity |
| Material | Polyolefin (PO) |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Recovered Wall Thickness | 0.051 in |
| Recovered Wall Thickness | 1.3 mm |
| Shrink Temperature | 110 °C |
| Shrinkage Ratio [Max] | 3 |
| Shrinkage Ratio [Min] | 1 |
| Spool Size | 500 ' |
| Spool Size | 152.4 m |
| Type | Tubing, Flexible |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Digi-Spool®, Continuous Spool | 1 | $ 2.72 | |
| 5 | $ 2.61 | |||
| 10 | $ 2.02 | |||
| 25 | $ 1.85 | |||
| 50 | $ 1.74 | |||
| 100 | $ 1.63 | |||
Description
General part information
W3B2S 3/8 BLACK SPL
Heat Shrink Tubing, Flexible 0.374" (9.50mm) 3 to 1 Black Enter Number of Feet in Order Quantity
