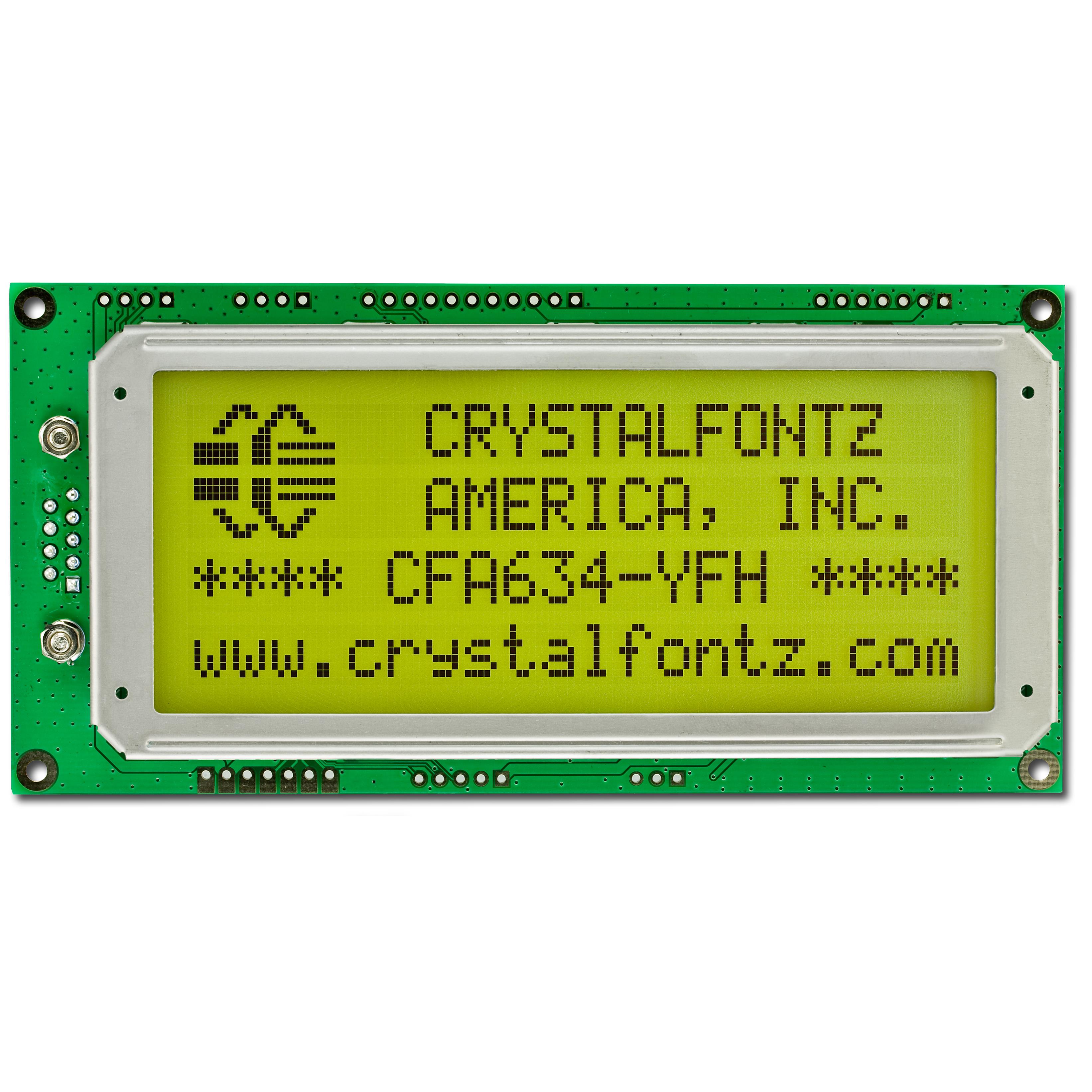

CFA634-YFH-KU
ActiveCrystalfontz
20X4 CHARACTER DISPLAY LCD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CFA634-YFH-KU
ActiveCrystalfontz
20X4 CHARACTER DISPLAY LCD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CFA634-YFH-KU |
|---|---|
| Background Color | Yellow |
| Character Size [y] | 3.84 mm |
| Character Size [z] | 7.3 mm |
| Display Format [x] | 20 |
| Display Format [y] | 4 |
| Display Mode | Transflective |
| Display Type | FSTN - Film Super-Twisted Nematic |
| Interface | SPI, RS-232, USB, I2C |
| Number of Characters | 80 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Outline L x W x H [x] | 130 mm |
| Outline L x W x H [y] | 63 mm |
| Outline L x W x H [z] | 19.9 mm |
| Text Color | Dark |
| Viewing Area [x] | 102 mm |
| Viewing Area [y] | 41.5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 108.21 | |
| 10 | $ 89.43 | |||
| 20 | $ 86.23 | |||
| 50 | $ 83.05 | |||
| 100 | $ 81.76 | |||
| 200 | $ 81.13 | |||
| 500 | $ 80.49 | |||
| 1000 | $ 79.21 | |||
Description
General part information
CFA634-YFH-KU
Character Display Module Transflective FSTN - Film Super-Twisted Nematic LED - Yellow/Green I2C, RS-232, SPI, USB 130.00mm x 63.00mm x 19.90mm
